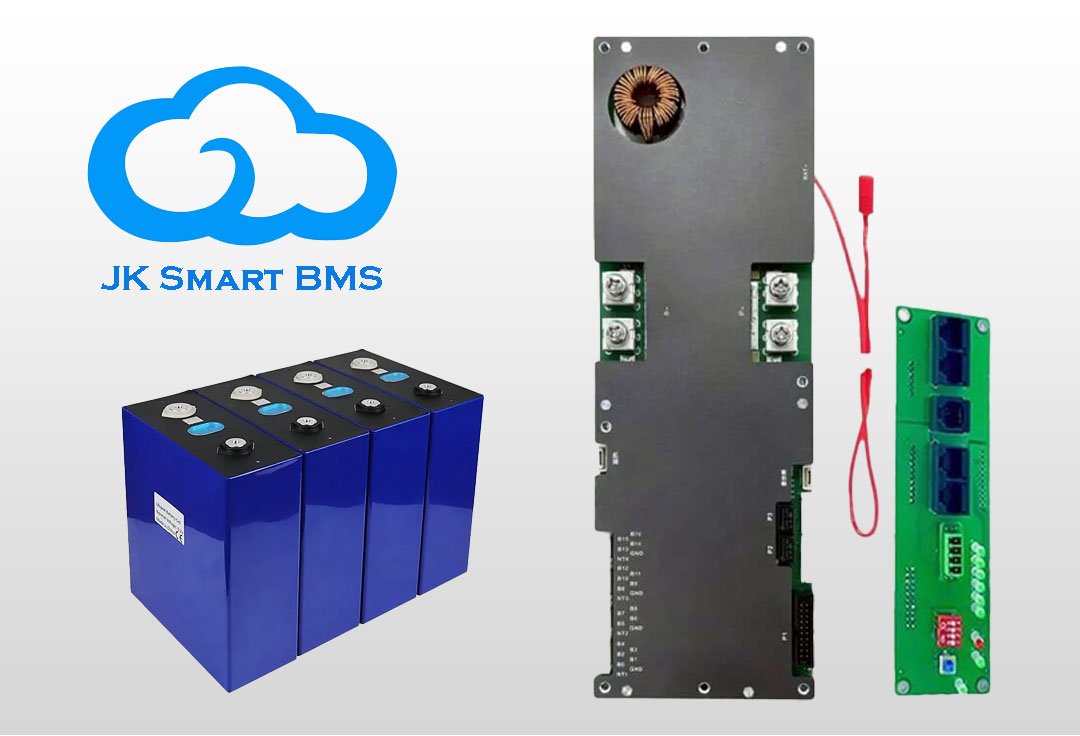

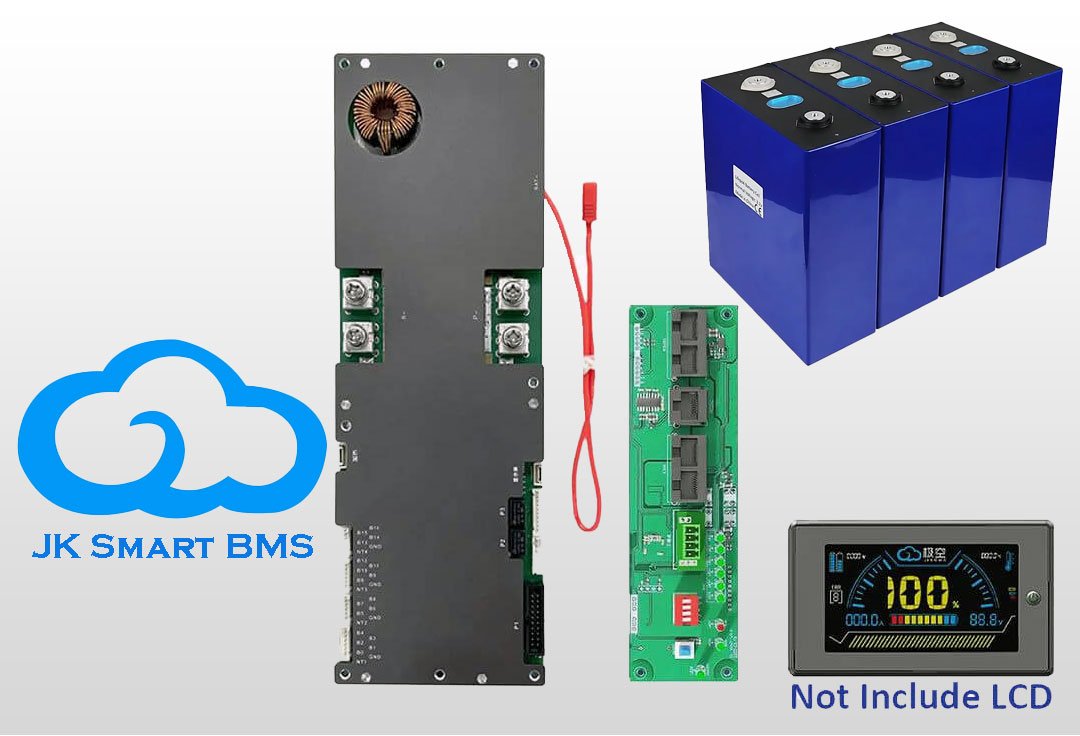

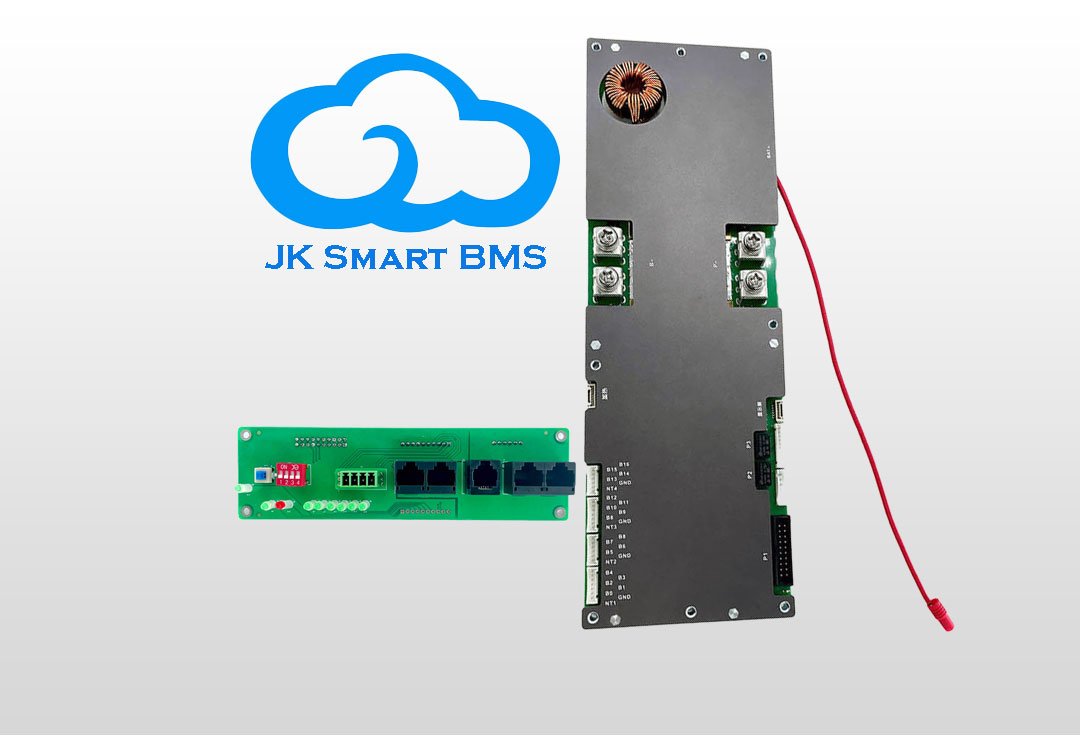

JKBMS PB1A16S10P 8S–16S 100A Smart BMS with 1A Active Balancing for LiFePO4/Li-ion/LTO – Compatible with Growatt, Deye, Voltronic & More
Product Specifications:
| Parameter | Specification |
|---|---|
| Battery Strings | 8S to 16S |
| Continuous Current | 100A |
| Power Supply Mode | Self-powered by the battery pack |
| Single Cell Voltage Detection | 0–5V, Error < 10mV (Typical < 5mV) |
| Voltage Drop Detection | Supported for individual cells |
| Balance Current | 1000mA (1A), Active Balancing (Always On) |
| Wiring Method | Same port (combined charge/discharge port) |
| Short Circuit Protection | Supported |
| Bluetooth | Built-in, supports Android and iOS apps |
| Temperature Detection | -40°C to 125°C |
| Total Voltage Detection | 0–100V, Accuracy < 0.5% FSR (Full Scale Range) |
| Current Sense Shunt Range | -150A to +300A, Error < 0.5% FSR |
| SoC Estimation Accuracy | Error < 8% (under normal operating conditions) |
| Remaining Capacity Accuracy | Error < 8% |
| Cycle AH Calculation | Total cumulative value is 50% of charge/discharge AH |
| Operating Power Consumption | < 5mA (no communication), < 15mA (with RS485/CAN) |
| Standby Power Consumption | < 2mA |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +95°C |
