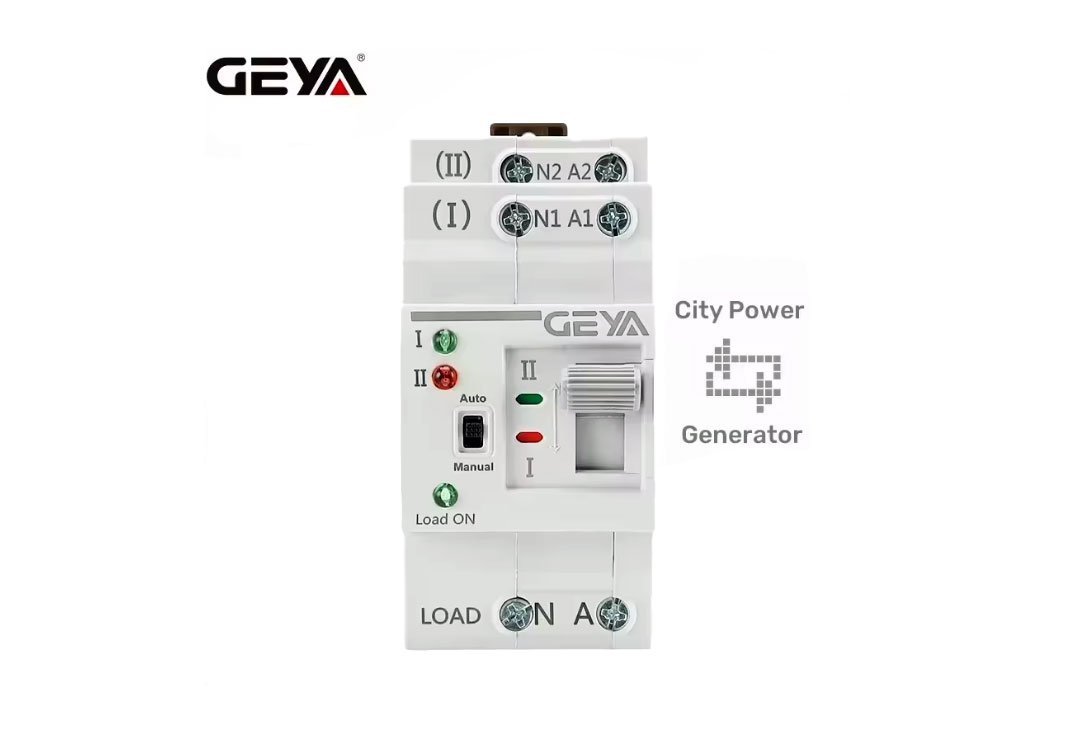

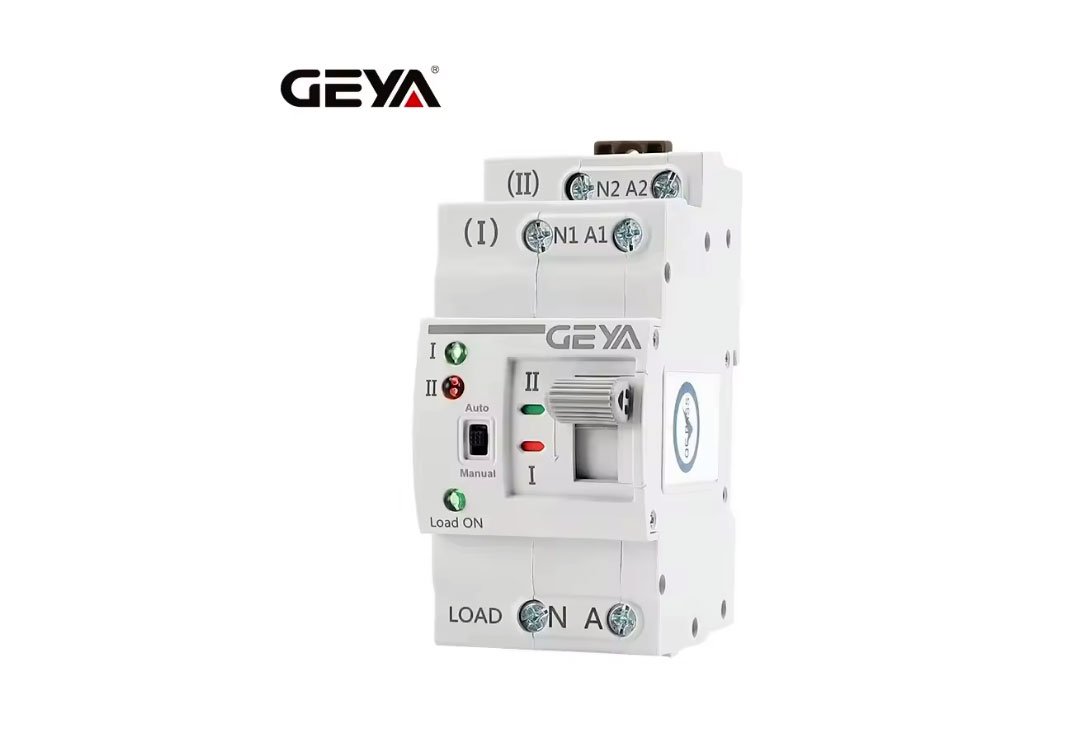

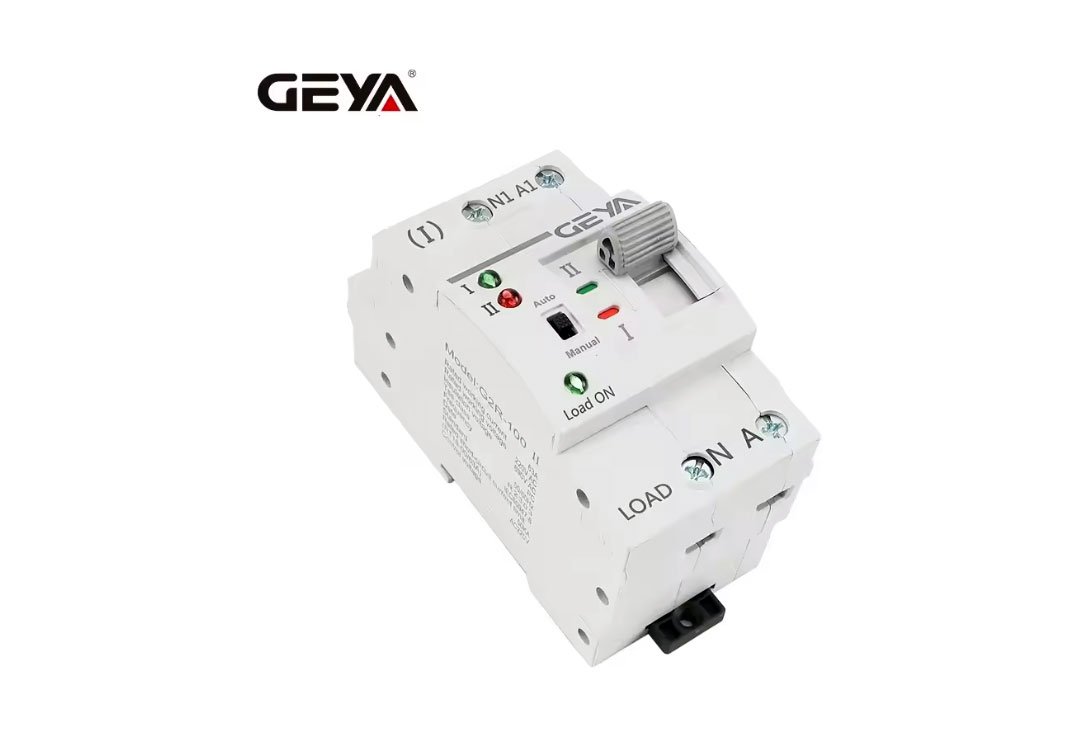

GEYA 63A 2P Auto Manual Transfer Switch | DIN Rail Mount | AC 110V/220V Coil | City to Generator Switching
₨8,500.00 Original price was: ₨8,500.00.₨8,000.00Current price is: ₨8,000.00.
- Rated Insulation Voltage (Ui): 690V
- Rated Impulse Withstand Voltage: 8kV
- Rated Working Voltage (Ue): AC220V / AC110V
Description
GEYA 63A 2P Auto Manual Transfer Switch | DIN Rail Mount | AC 110V/220V Coil | City to Generator Switching
| Parameter |
Specification |
| Rated Operating Current (Ie) |
63A |
| Form |
Ac Sine |
| Rated Insulation Voltage (Ui) |
690V |
| Rated Impulse Withstand Voltage |
8kV |
| Rated Working Voltage (Ue) |
AC220V |
| Rated Frequency |
50 / 60 Hz |
| Pole Configuration |
2P |
| Short-Circuit Current (Iq) |
50kA |
| Fuse Type |
RT16-00-63A |
| Control Voltage (Us) |
AC220V, 50Hz |
| Operating Range |
85%Us – 110%Us |
| Auxiliary Circuit |
AC220V / 110V, 50Hz, Ie = 5A |
| Change-over & Response Times |
< 50ms (all functions) |
| Mechanical Life |
≥ 8000 operations |
| Electrical Life |
≥ 1500 operations |
| Usage Category |
AC-31B |
| Class |
PC class (switch/load without fault) |
