Schneider Dc SPD 1000V 2P 40KA Voltage Protector Solar PV Photovoltaic G2040PV/1000

Description

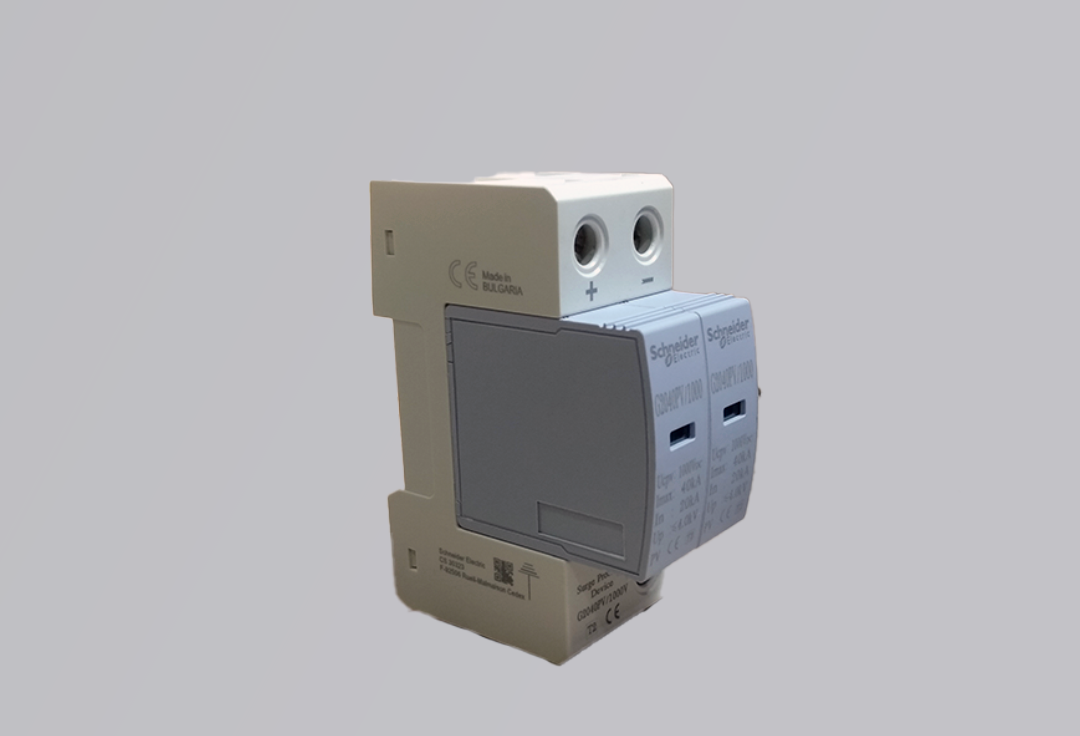

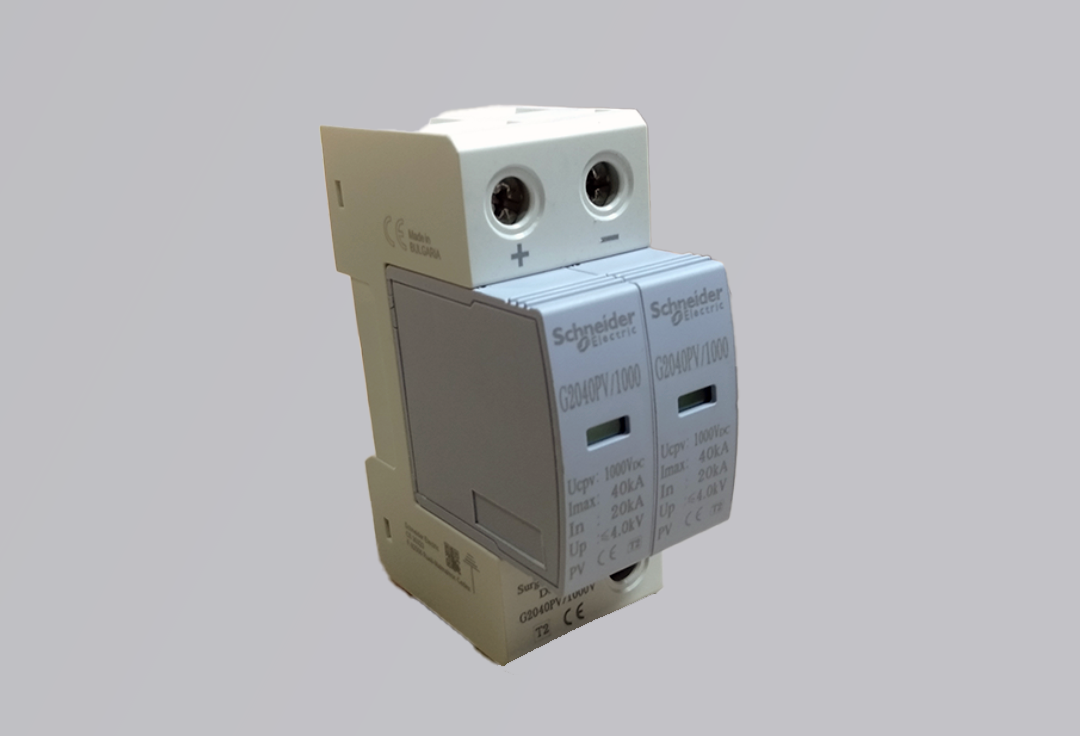

Schneider Dc SPD 1000V 2P 40KA Voltage Protector Solar PV Photovoltaic

Product Specifications:

Schneider Surge protective devices, protect against lightning surge voltages in solar systems (photovoltaic power supply systems). These units must be installed in parallel on the DC networks to be protected and provide standard and different modes of protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and extended—high-energy MOVs equipped with specific thermal disconnectors and related failure indicators.

• Model G2040PV/1000
• Poles: 2
• Voltage: 1000V
• Discharge Current:40kA
