Description

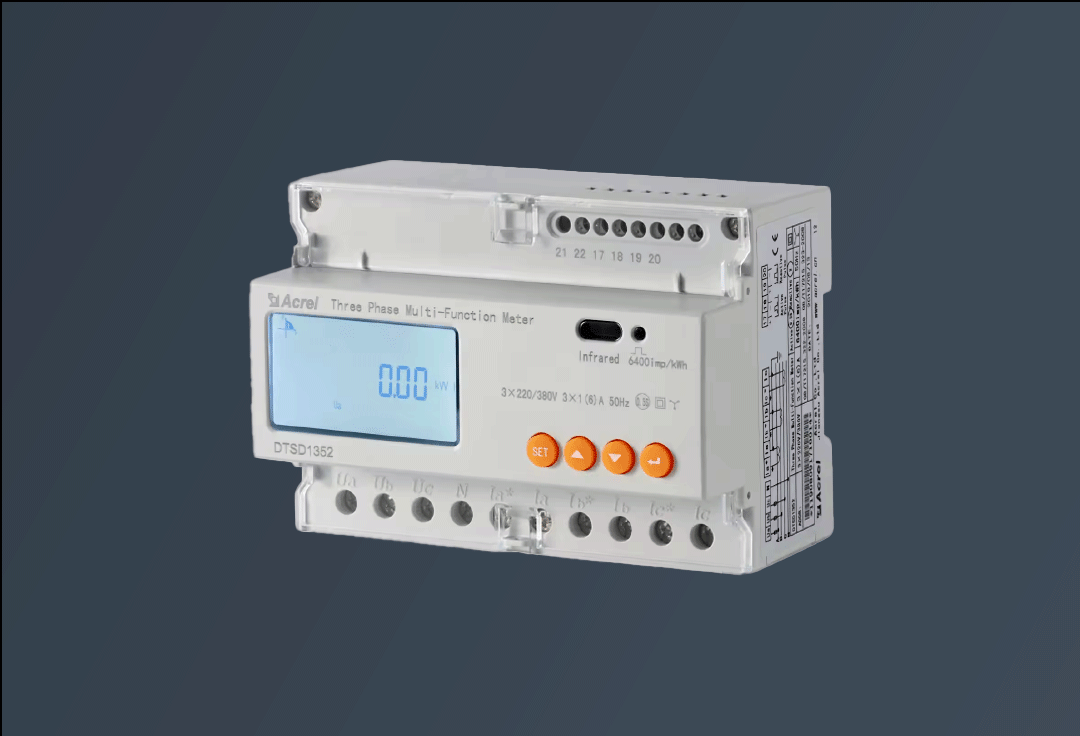

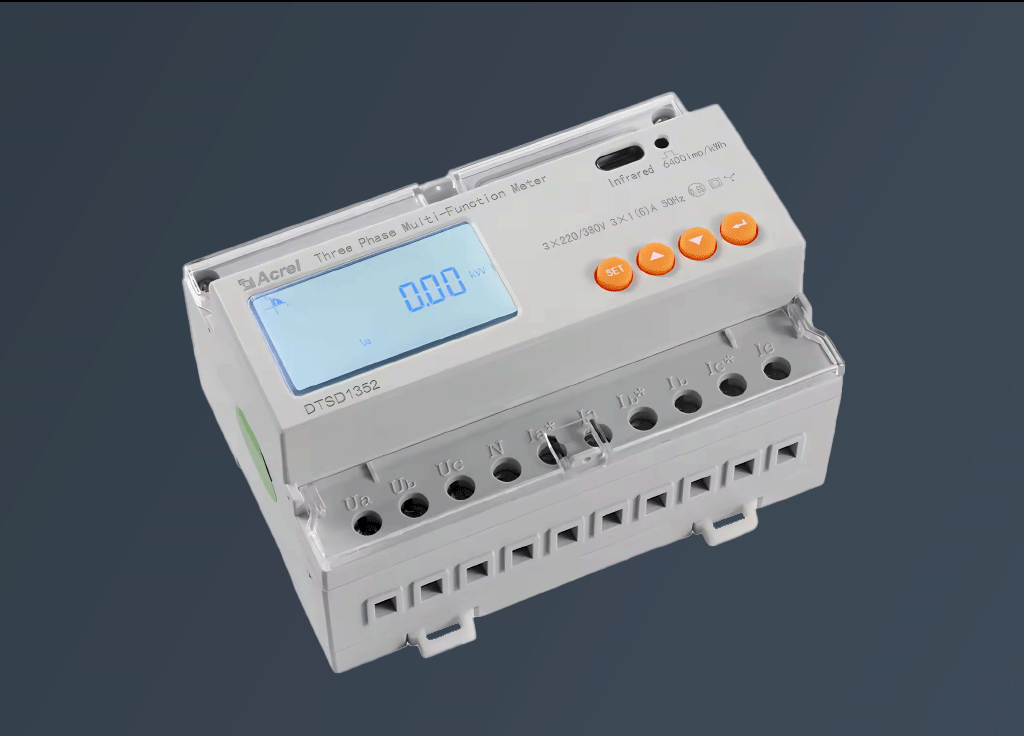

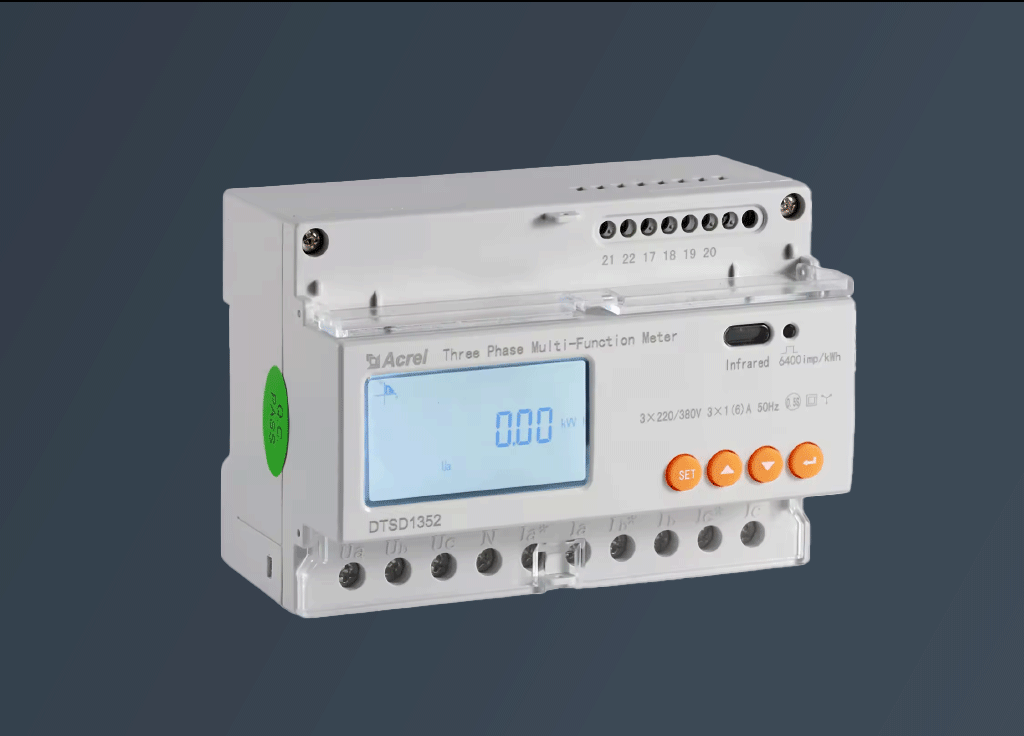

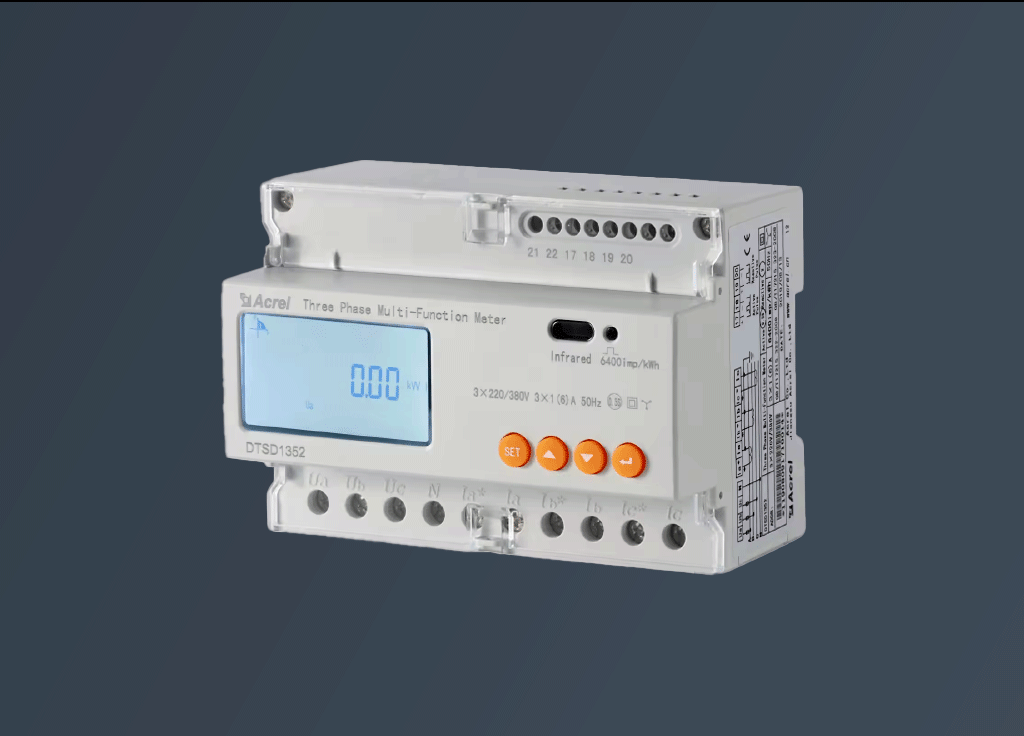

Acrel Zero Export Device ADL300 1352 Din Rail Mounted 3-Phase Prepaid Smart Energy Meter Using RS485 in Pakistan

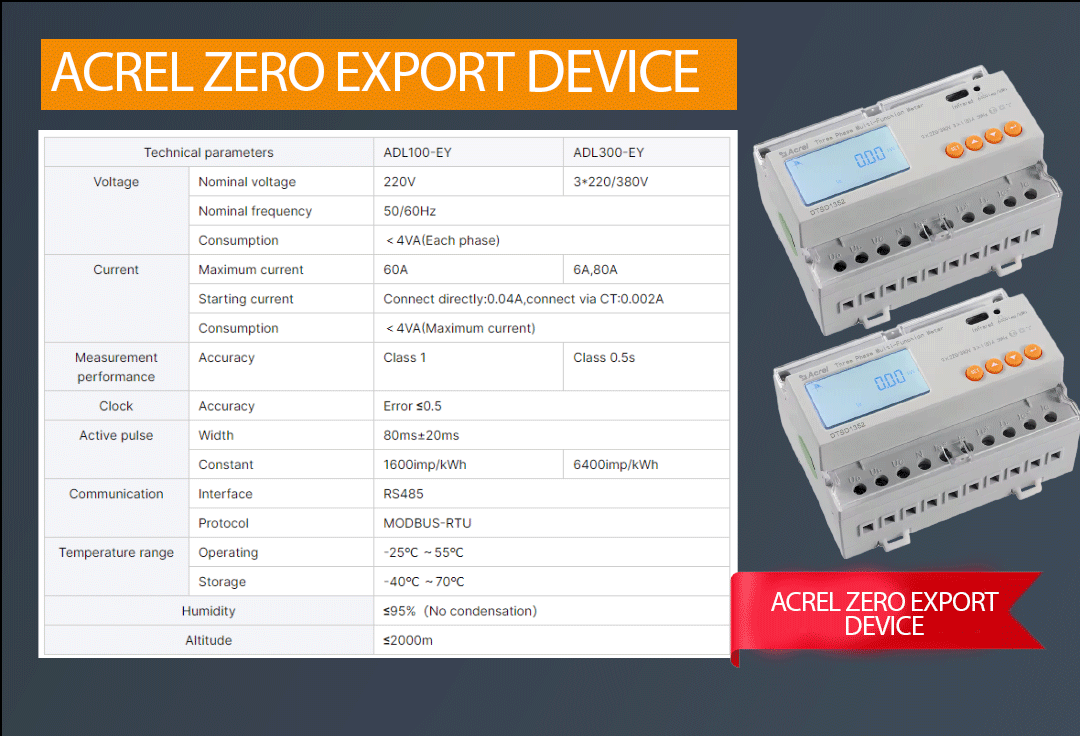

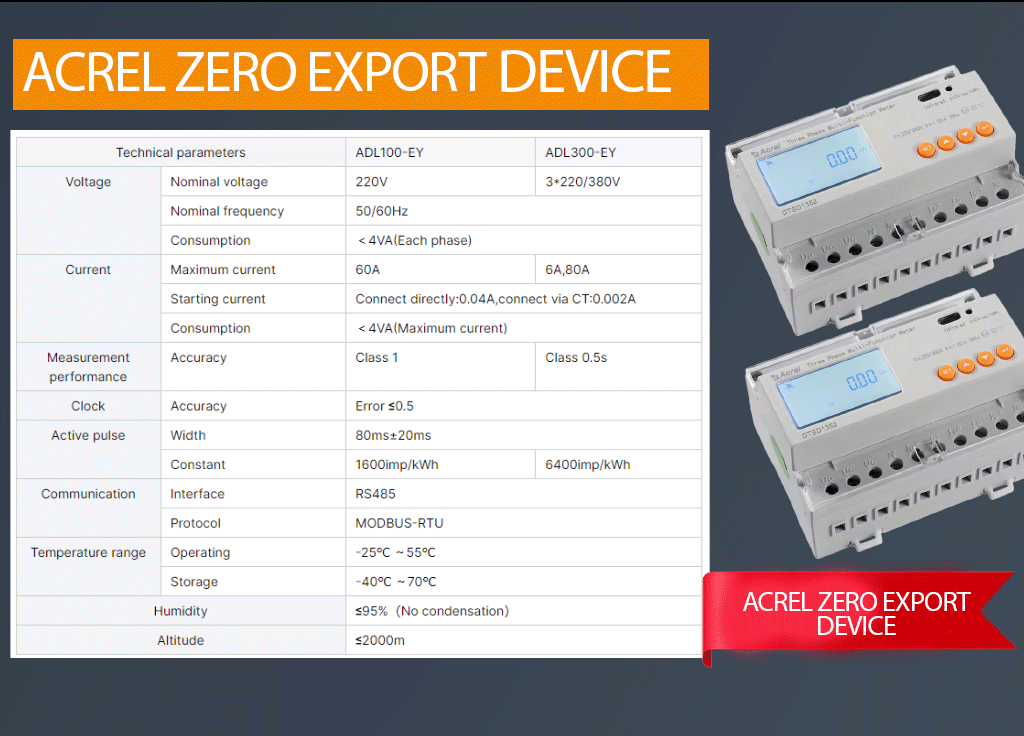

Product Specifications:

• Phase: Three Phase
• Measuring Energy Range: 000000.00~999999.99 kWh
• Output Voltage: AC 100V/220V/380V/660V
• Place of Origin: China
• Brand Name: Acrel
• Model Number: DTSD1352
• Display Type: Digital Only
• Accuracy Class: 0.5S Class
• Operating Temperature: -25°C to +55°C
• Dimensions: 127 x 88 x 70 mm
• Current/-CT: 10-80A/1(6)A
• Standards Compliant: IEC 62053-21:2003
• Option Function C: RS485 Modbus-RTU communication
• Option Function F: Multi tariff energies
• Option Function K: 1DI/1DO
• Option Function 2C: Second RS485 (Modbus-RTU)
• Option Function T: Three channel temperature measurement (NTC)
• Option Function H: 2-31st harmonic
• Frequency: 45~65Hz
• Rated Current: AC 250A, 100A
