mppt Solar charge controller

Harness the Sun’s Potential: Discover the Sun Energy with Pakistan’s no.1 MPPT Solar Charge Controller

Efficiency Meets Elegance: The Stylish MPPT Solar Charge Controller

Maximum Power Point Tracking (MPPT) solar charge controller is an electronic device used in solar power systems to optimize the efficiency of charging batteries from solar panels. It acts as an intermediary between the solar panels and the battery, ensuring that the maximum amount of energy is extracted from the solar panels and transferred to the battery for charging.

The MPPT charge controller is designed to automatically adjust the voltage and current levels of the solar panels to match the optimal operating point, known as the maximum power point (MPP), where the panels can generate the most energy. By continuously monitoring and adjusting to changes in solar panel voltage and sunlight intensity, MPPT charge controllers can maximize the power obtained from solar panels.

Compared to traditional charge controllers, MPPT controllers offer several benefits, including higher charging efficiency and the ability to handle solar panel configurations with higher voltage. They are especially beneficial in situations where solar panels may be partially obscured, have temperature changes, or have suboptimal orientation.
Overall, the MPPT solar charge controller plays an essential role in maximizing the power output and optimizing the charging process in the solar system, allowing the efficient use of solar energy. more efficient and better battery charging performance.

Inside the Maximum Power Point Tracking (MPPT) charge controller you will typically find the following components and features:

DC-DC converter:

The heart of the MPPT charge controller is a DC-DC converter circuit that converts the various DC outputs of the solar panels into a stable and suitable voltage for battery charging. It regulates voltage and current levels to operate at the peak power point (MPP) of the solar panels.

Microcontroller or Digital Signal Processor (DSP):

MPPT charge controllers use a microcontroller or DSP to control the operation of the DC-DC converter. It continuously monitors the voltage and current of the solar panel, calculates the maximum power point (MPP), and adjusts the converter parameters accordingly.

Maximum PowerPoint Tracking Algorithm:

The MPPT algorithm implemented in the microcontroller or the controller’s DSP is responsible for monitoring and determining the MPP of the solar panels. It automatically adjusts the operating parameters of the DC-DC converter to extract the maximum available power from the panels.

Voltage and current sensors:

The MPPT charge controller integrates voltage and current sensors to measure the electrical parameters of the solar panels and the charging current entering the battery. These sensors provide feedback to the microcontroller or DSP for correct MPPT operation.

Load control and battery management:

The MPPT charge controller includes battery management and load control functions. They typically support different battery chemistries (e.g. lead acid, lithium-ion) and have built-in charging algorithms and profiles to ensure safe and efficient charging while protecting the battery from overcharging. excessive or deep discharge. User interface and display: Many MPPT charge controllers have built-in user interfaces and displays, such as LCD screens and buttons. This allows users to monitor system parameters, configure settings, and access information such as battery voltage, charging current, solar panel output, and more.

Communication ports:

Some MPPT charge controllers are equipped with communication ports, such as RS485, RS232, or Ethernet, to allow data logging, monitoring, and remote control of the solar system. These ports facilitate integration with external monitoring systems or communication with other devices.

Protection and safety features:

The MPPT charge controller incorporates various protection mechanisms to protect the solar system components. These may include overvoltage protection, overcurrent protection, short circuit protection, reverse polarity protection, and temperature monitoring to prevent damage to the charge controller, battery, and other system components.

These are the key components and features commonly found in MPPT charge controllers. Design, specific features, and additional features may vary between different models and manufacturers.

Discover the Power of MPPT Controllers | Optimize Solar Energy Harvesting with Accurate Results | Increase Efficiency & Performance | Find the Perfect MPPT Controller for Your Solar Power System

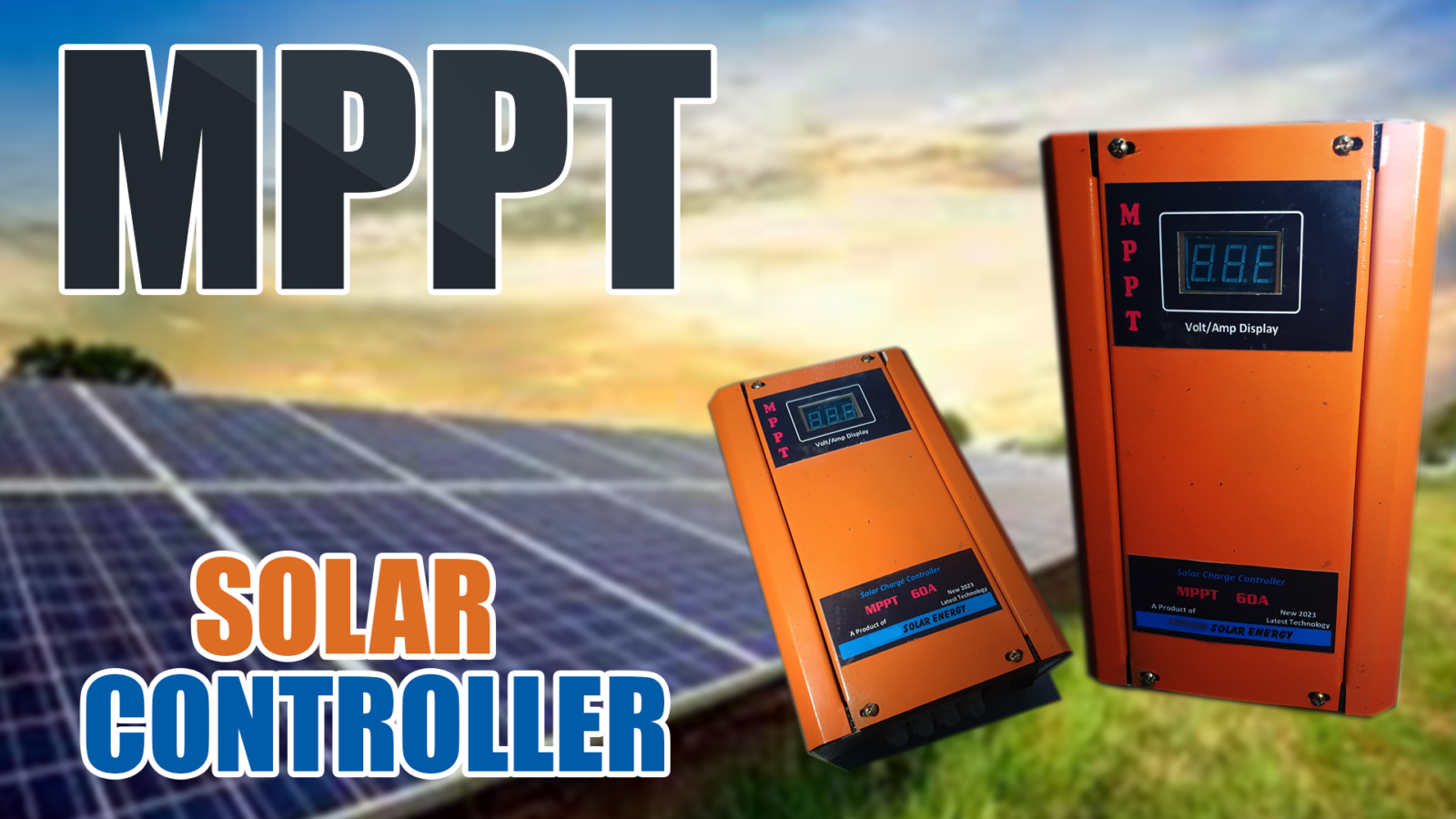

MPPT Solar Charge Controller

Sparco mppt Solar charge controller works well under standard temperature conditions. It has a digital display to show the generated power from solar.

It also has a vent at the top with a fan to keep the MOSFET cool while working, As temperature increases the temperature sensor senses the temperature and the controller turns on the fan.

With advanced algorithms, these controllers dynamically track the ideal operating point, ensuring you extract every last drop of energy from the sun. Witness the incredible accuracy and responsiveness as MPPT controllers adapt to changing environmental conditions. Don’t settle for average results when you can harness the full potential of solar power. Upgrade to MPPT controllers and embark on an energy revolution today.
