3.2V LiFePO4 32650 / 32700 Battery Cell – 5000mAh to 7200mAh Grade A Rechargeable Lithium Battery

600.00

  • Battery Type LiFePO4 (Lithium Iron Phosphate)
  • Nominal Voltage 3.2V
  • Available Capacities 5000mAh (5Ah), 6000mAh (6Ah)

Description

3.2V LiFePO4 32650 / 32700 Battery Cell – 5000mAh to 7200mAh Grade A Rechargeable Lithium Battery

Product Specifications:

Specification Details
Battery Type LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage 3.2V
Available Capacities 5000mAh (5Ah), 6000mAh (6Ah), 7200mAh (7.2Ah)

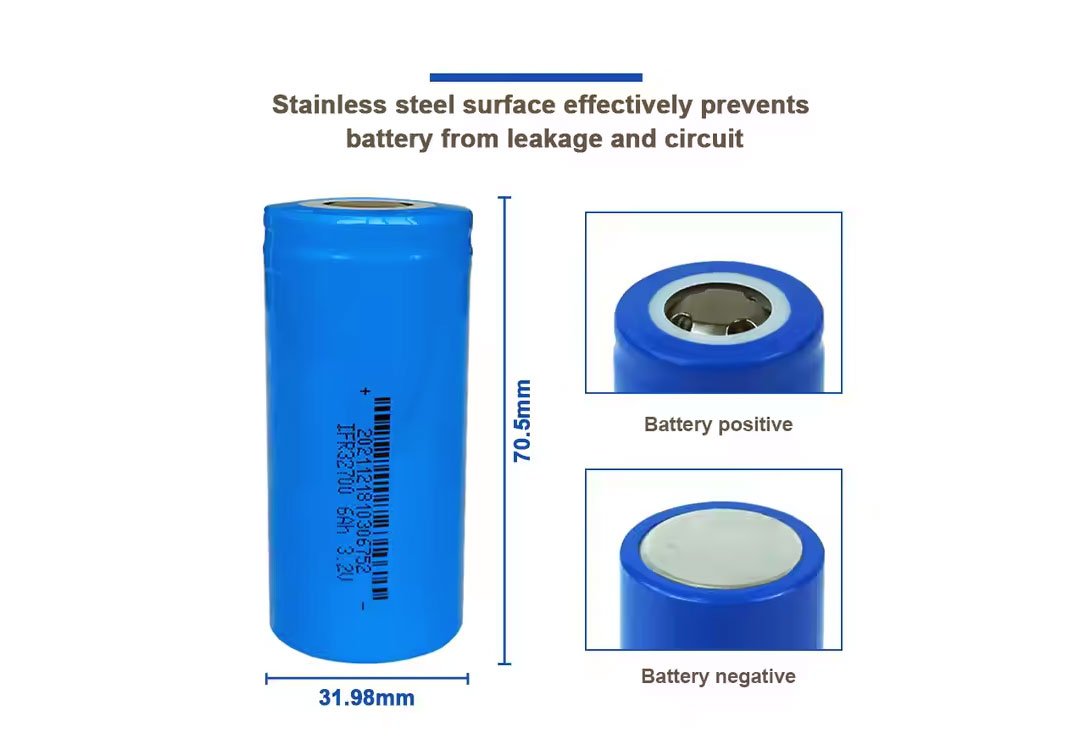

Cell Format 32650 (32×65mm), 32700 (32×70mm)
Charge Voltage 3.65V max
Discharge Cut-off Voltage 2.5V
Nominal Energy Up to 23.04Wh (for 7200mAh cell)
Cycle Life 2000–3000+ cycles (under standard conditions)
Standard Charge Current 0.5C (e.g., 3A for 6000mAh)
Max Charge Current 1C (e.g., 6A for 6000mAh)
Standard Discharge Current 0.5C
Max Continuous Discharge 1C
Internal Resistance ≤15mΩ
Weight Approx. 130g (32650), 140g (32700)
Operating Temperature (Charge) 0°C to 45°C
Operating Temperature (Discharge) -20°C to 60°C
Storage Temperature -10°C to 45°C
Grade Grade A – High quality and consistency
Protection Circuit Not included (BMS required for pack use)

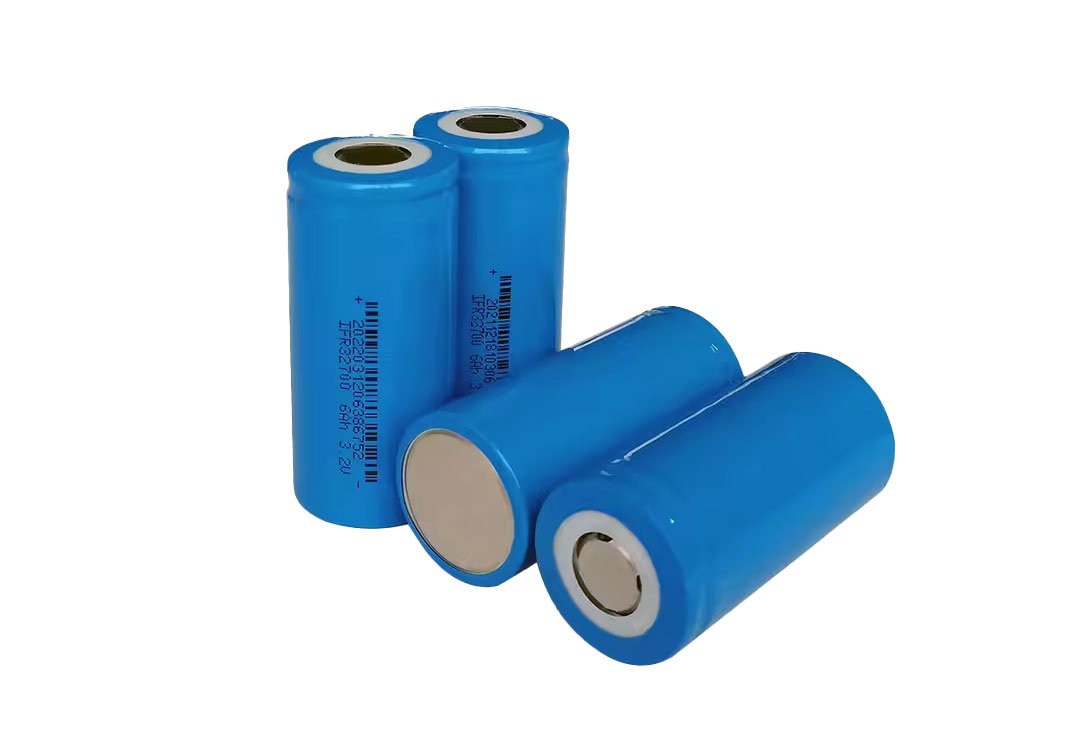

3.2v 6Ah Cells
3.2v 6Ah Cells
3.2V 6 Ah Lithium celll
3.2V 6 Ah Lithium celll
