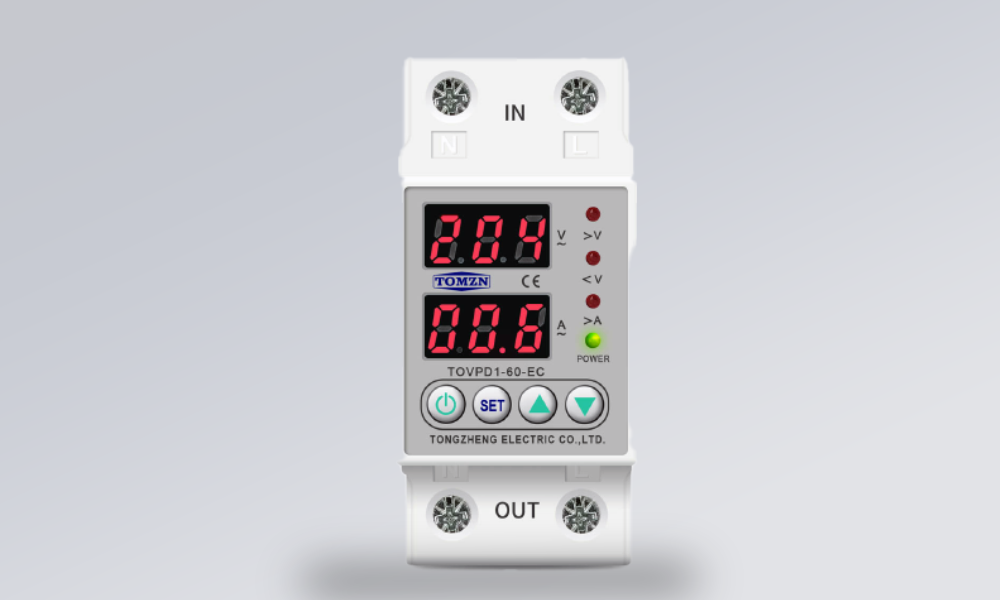

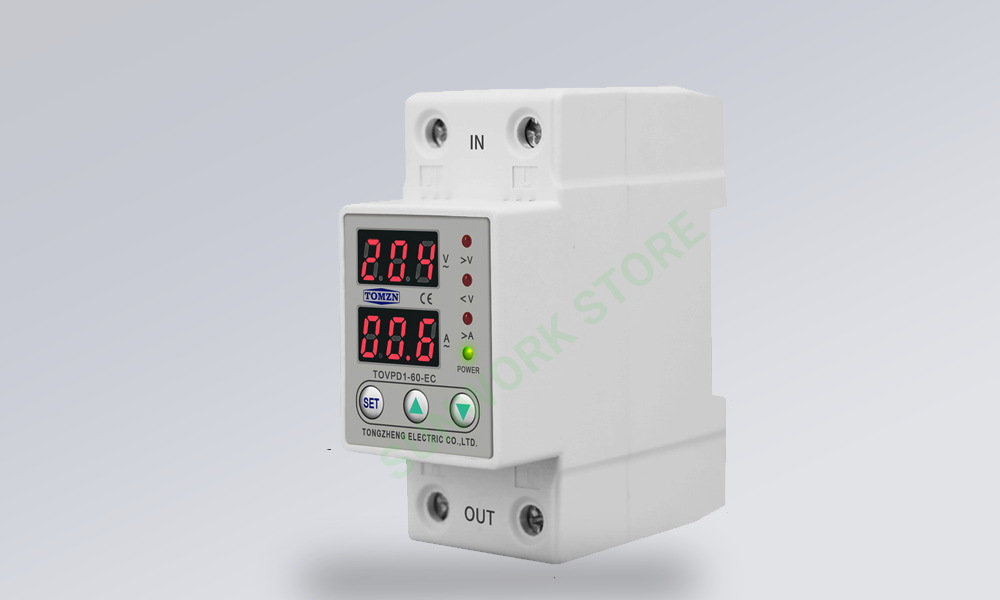

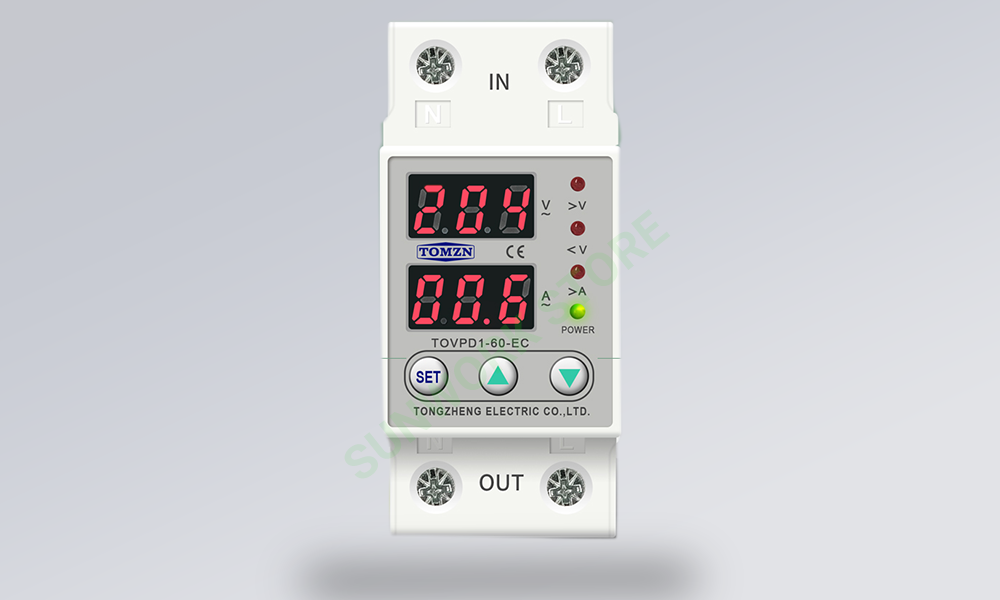

Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63A

Description

Tomzn Undercover Voltage Protection Device

• 1. Over-voltage protection
• 2. Under-voltage protection
• 3. Over-current protection
• 4. Automatic recovery

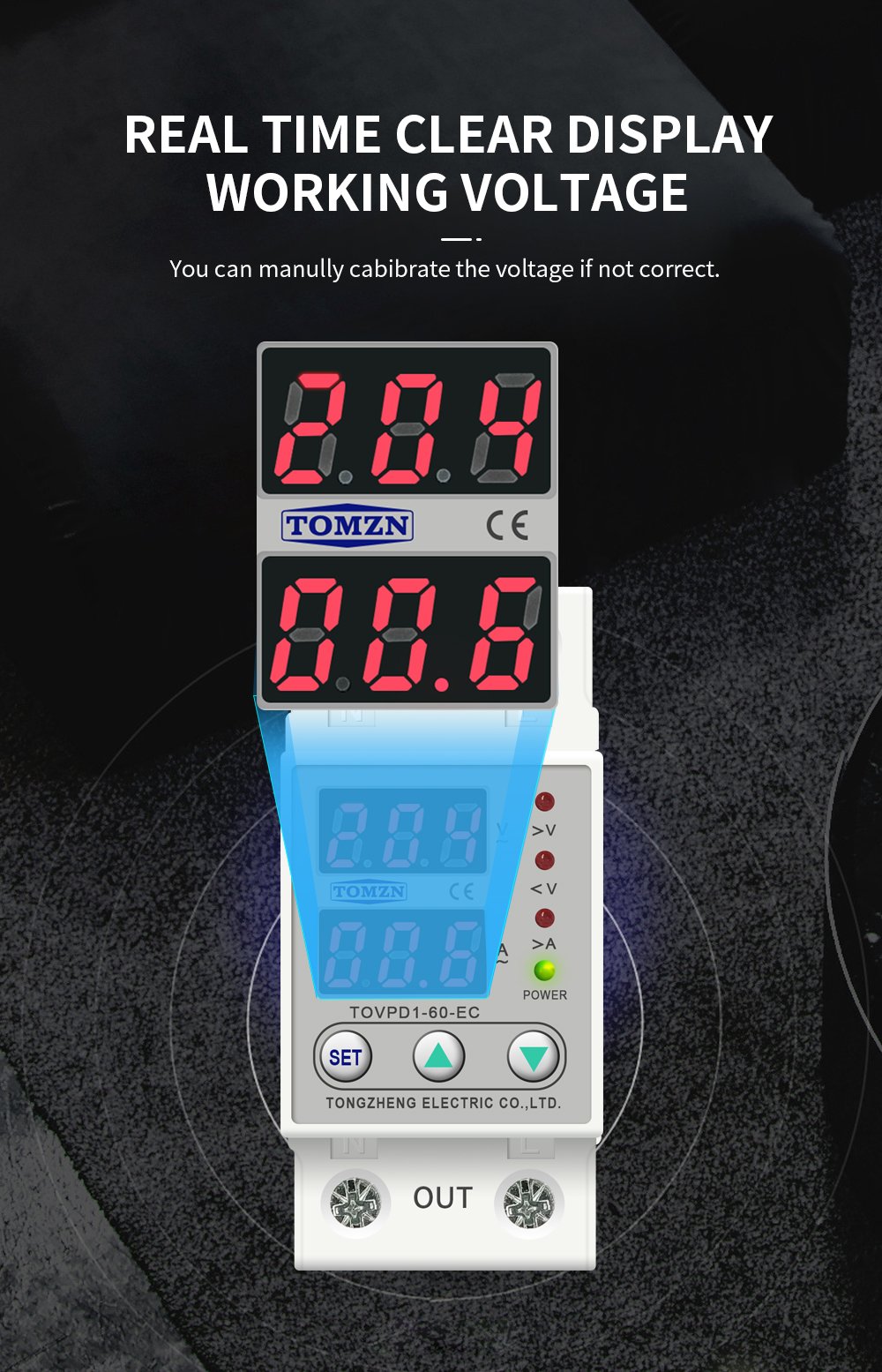

• 5.Voltage display(voltage measurement)
• 6. Current display (current measurement)
• 7. Voltage calibration A13

• 1. Model number: TOVPD1-60-EC
• 2.Power supply:230VAC 50/60Hz
• 3. Max.Loading power:1~40A  Adjustable(default:40A)
•  1~63A  Adjustable(default:63A)
• 4. Over-voltage protection value range:230V~300V (default:270V)
•    Over-voltage recovery voltage range:225V–295V(default:250V)
•    Over-voltage protection action time:0.1s~30s(default value:0.5s)
•     Over-voltage recovery delay time:1s~500s(default:30s)
• 5.Under-voltage protection value range:140V–210V (default:170V)
•     Under-voltage recovery voltage range:145V–215V (default:190V)
•    Under-voltage protection action time:0.1s~30s(default:0.5s)
•    Under-voltage recovery delay time:1s~500s(default:30s)
• 6.Over-current adjustment range:1-40A (default:20A) 1-63A  (default:40A)
•    Over-current action range:0.1~30 second (default:0.5s)
•    Over-current recovery delay time:1s~500s(default:30s)
• 7. Power-on delay time:1s~500s(default:10s)
• 9. Power consumption: <2W
• 10. Electric machinery life: 100,000 times

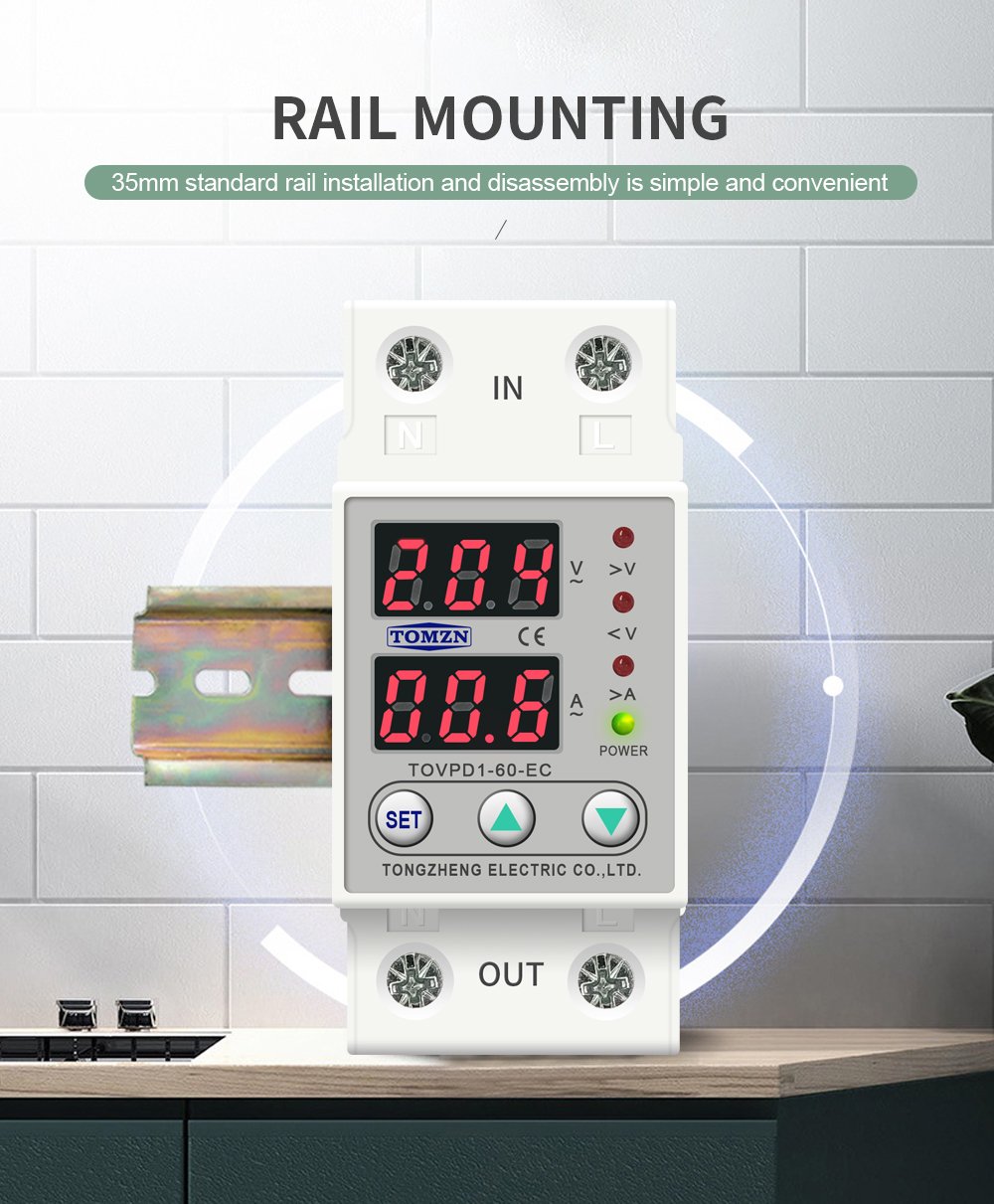

• 11.Installation:35mm DIN rail
