Description

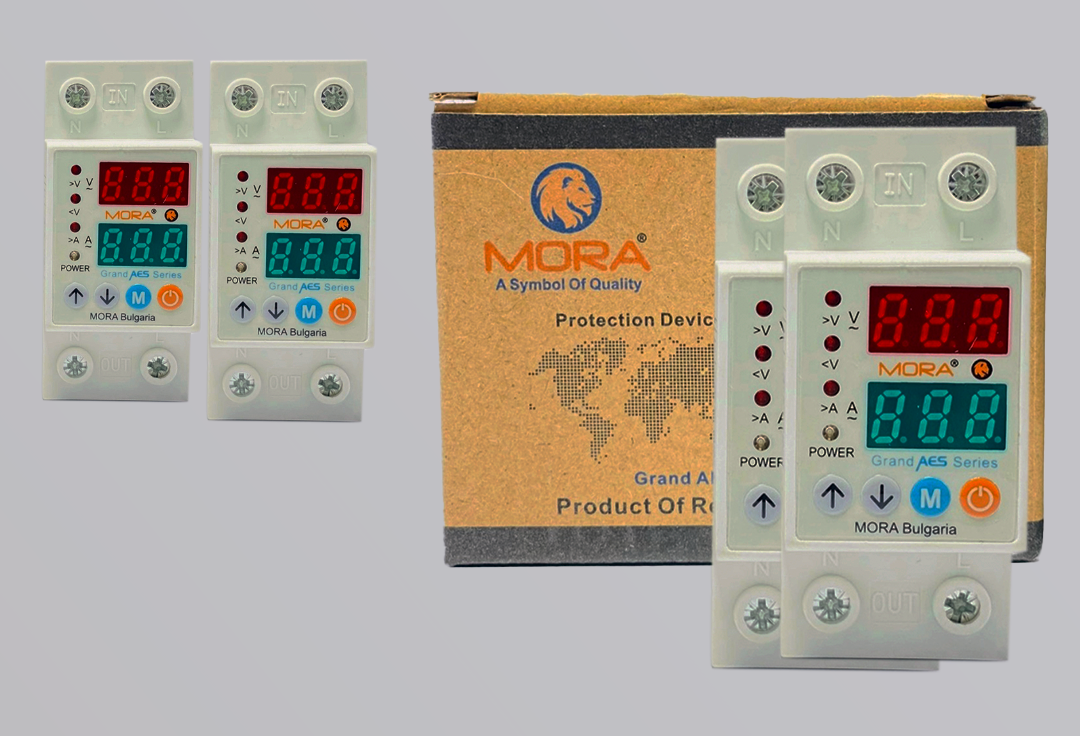

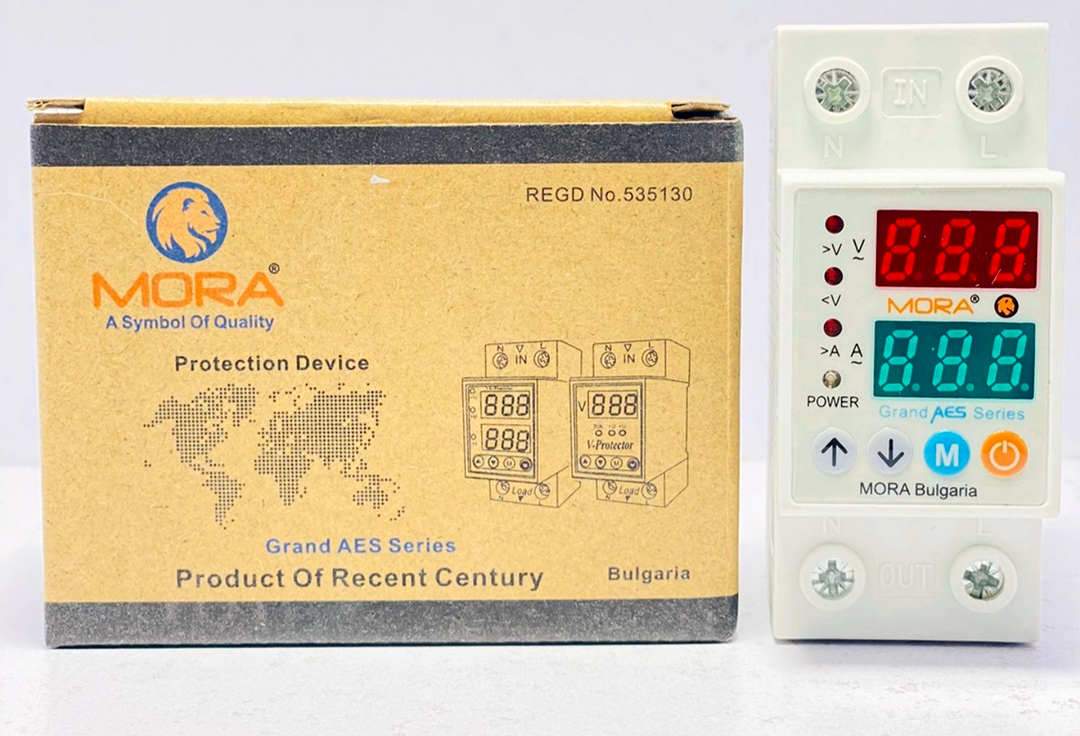

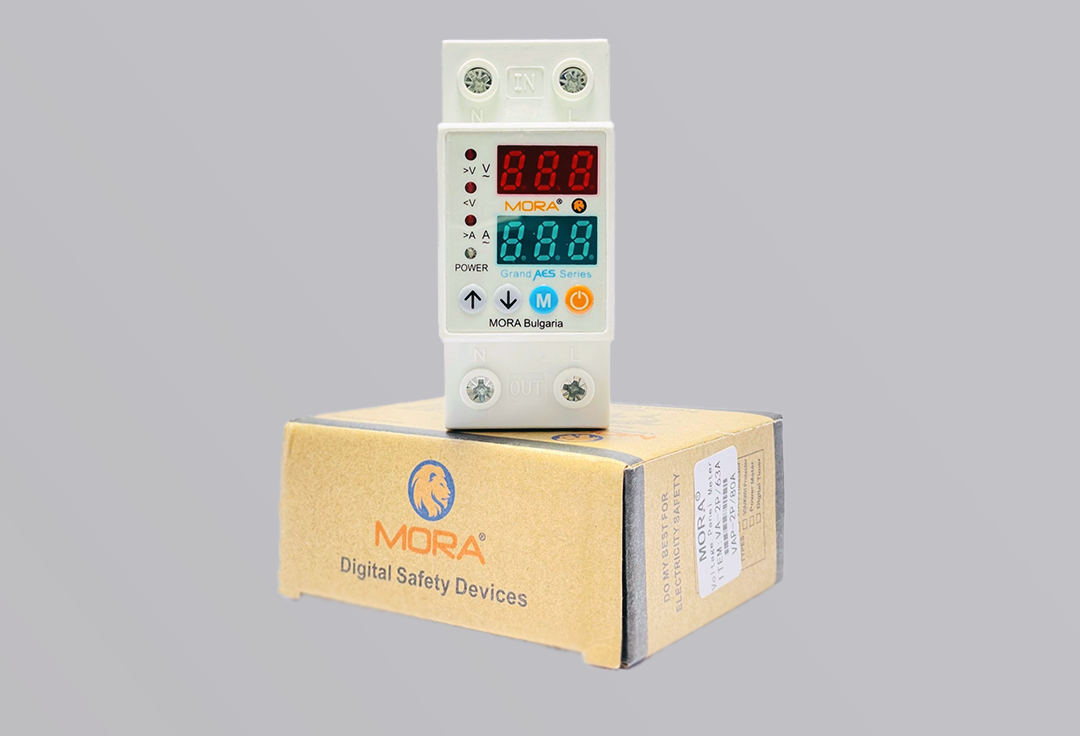

Mora VA Protection- Under Over Voltage Ampere Protection -AES Series 80A

Product Specifications:

VA-protector
Brand: Mora
Amp: 80A
Rated working current: 80A

Overvoltage protection value: AC 230V – AC 275V ; Factory default 275V
Undervoltage protection value: AC 160V – AC 220V; Factory default 175V
Automatic closing delay: 0-30 seconds; Factory default 30 seconds
Over-current protection value: 0-40A; Factory default 40A
Display range of effective voltage 70-400V
Display range of effective current 0-99.9A
Withstand lightning surge voltage in the range of 5kV
8 modular contour design and guide-rail mounting
Rated working voltage: AC 230V, 50Hz
Maximum short circuit withstand current: 3000A below 40A, 4500A above 50A (action time 10ms)
Action time: 0-30 seconds; Factory default 30 seconds
Own power consumption <1.5 watt
Motor Mechanical life: > 100,000 times
Dimensions: 80 x 37 x 66 mm (L x W xH)
Ambient temperature = standard
Working environment temperature range: -25 C ~ 55 C
Relative humidity: 45 – 90% RH: 40 C
Latitude: <2000m
Pollution level: 2 class
