Description

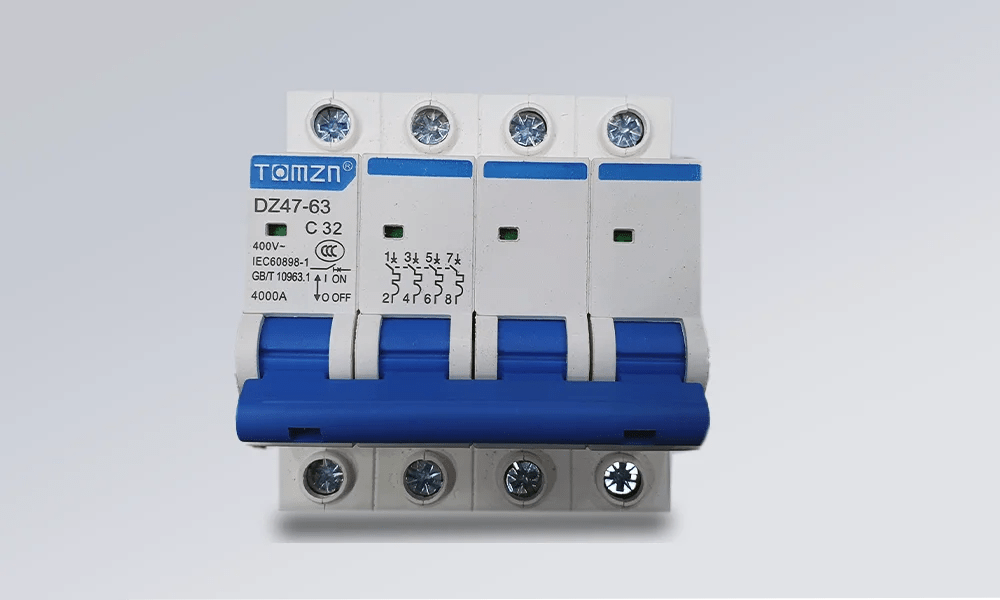

Tomzn Ac Breaker  4P Poles Mini Circuit Breaker AC 400VAc C10A C20A C30

Product Specifications:

• Rated Voltage: 400V AC
• Frequency: 50Hz/60Hz
• Current Ratings: C10A, C20A, C30A
• Tripping Curve: Type C (suitable for general applications with moderate inrush currents)
• Breaking Capacity: 6kA (indicative; please verify with manufacturer for exact value)
• Operating Temperature Range: -5°C to +40°C
• Storage Temperature Range: -40°C to +70°C
• Protection Degree: IP20 (protected against solid objects over 12mm and no protection against liquids)
• Mounting: DIN rail (TH-35) compatible
• Standards Compliance: IEC/EN 60898-1, GB/T 10963.1

Dimensions:

• 3-Pole (3P) Width: Approximately 54 mm
• 4-Pole (4P) Width: Approximately 72 mm
• Height: Approximately 77 mm
• Depth: Approximately 70 mm
