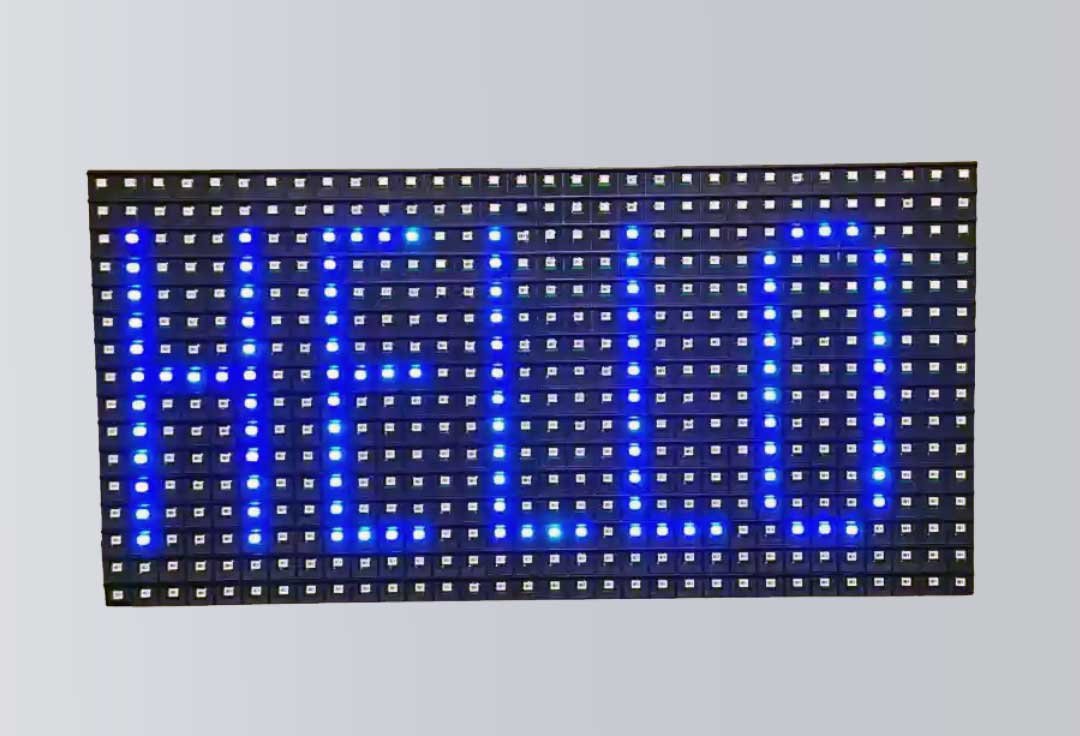

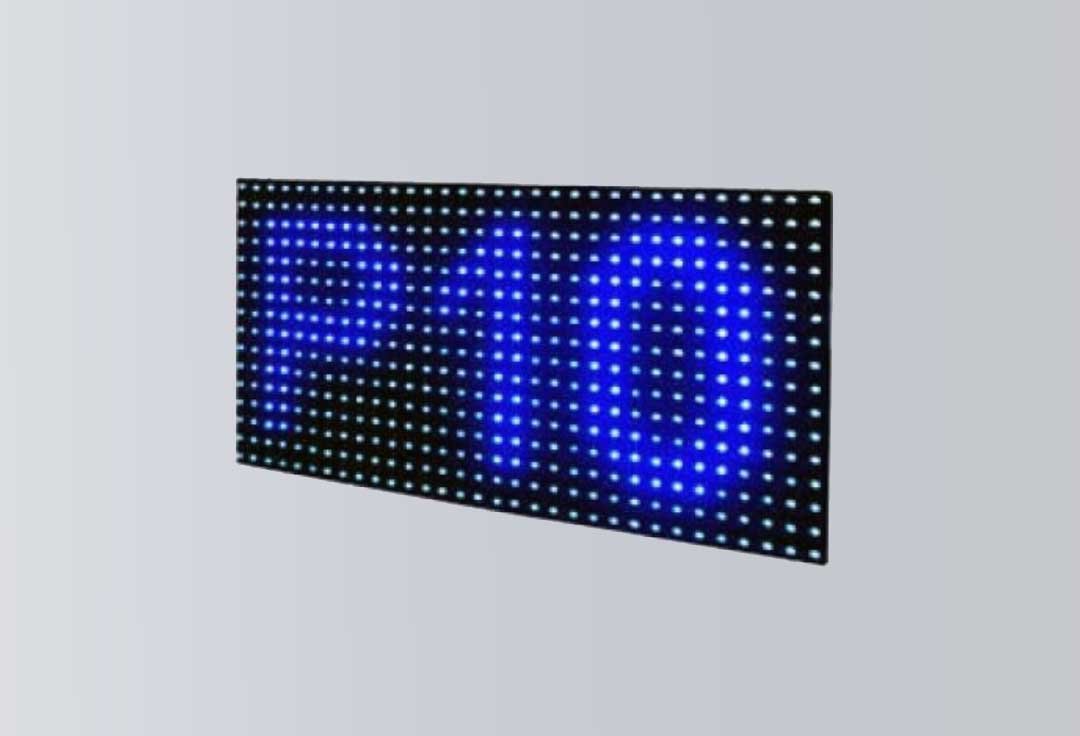

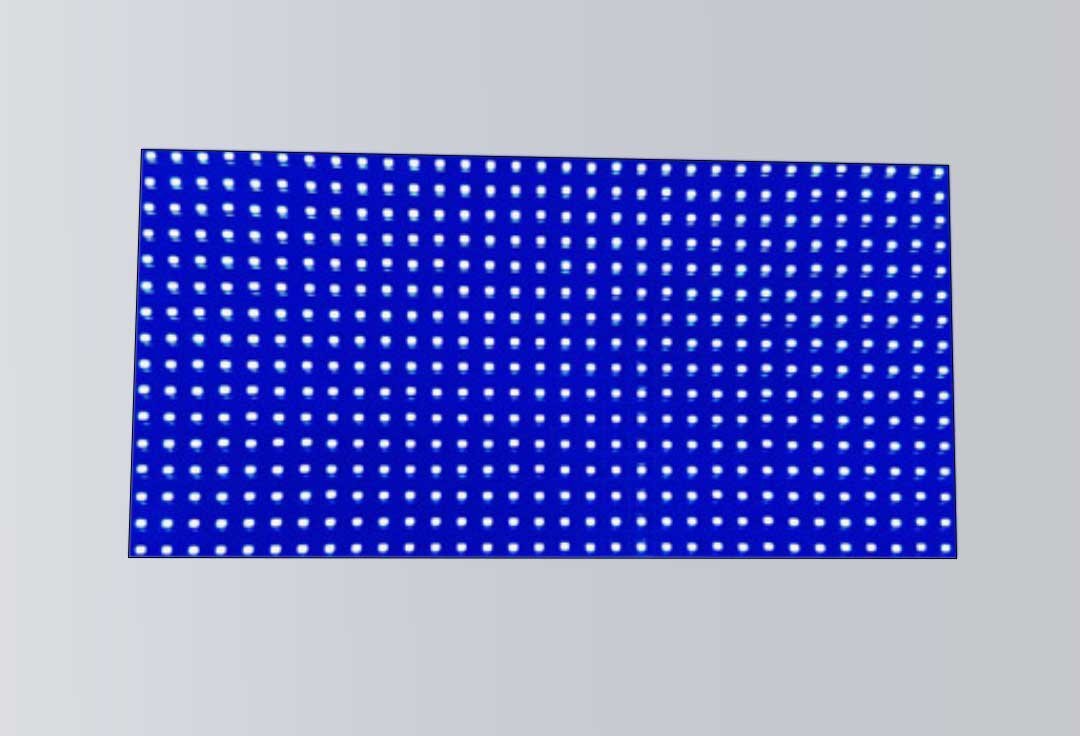

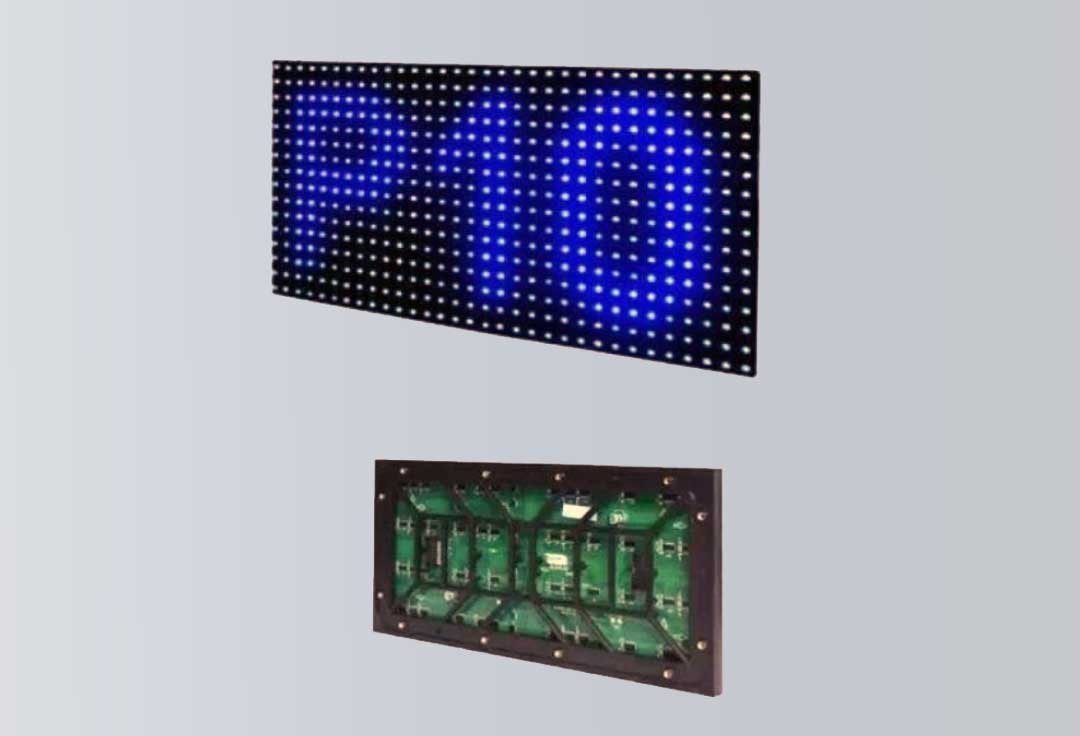

P10 SMD Single-Color Blue LED Display Panel Module, 32x16cm (320x160mm)

Product Specifications:

• Model: P10 Blue LED Module
• Pixel Pitch: 10 mm
• Pixel Configuration: 1R
• LED Chip Brand: Epistar
• Viewing Angles:
  • Horizontal: 80°
  • Vertical: 60°
• Scan Mode: 1/4 Scan
• Green Wavelength: 520-525 nm
• Brightness: 6500 cd/m²
• Pixel Resolution: 10,000 dots/m²
• Refresh Rate: 2000 Hz
• Max Power Consumption: 1302 W/m²
• Average Power Consumption: 250-550 W/m²
• Working Voltage: 5V DC (40A)
• Power Supply Input: AC 110/220V
• Module Dimensions (W×H): 320×160 mm
• Display Type: Single Color (Blue)
• LED Package: DIP Oval 346 Lamp
• Operating Platforms: Asynchronous or Synchronous
• Certifications: ETL, CE, RoHS, TUV, FCC Class A, ISO 9001:2008
• Lifespan: ≥100,000 hours

P10 SMD2835 1/4 Scan LED Display Module Specifications and Features

Features

• High-Quality Indoor Display Solution:
  Ideal for fixed installation in commercial environments.
• Standard Module Design:
  • Module size: 320x160mm, part of the 320x160mm standard series.
  • Easy for upgrades and replacements with existing installations.
• Efficient Design:
  • Reasonable PCB layout ensures excellent heat dissipation for a longer lifespan.
  • Equipped with high-quality SMD2835 LEDs for superior performance.

Module Parameters

• Pixel Pitch: 10 mm
• Pixel Configuration: SMD3535 Black LEDs
• Pixel Density: 10,000 pixels/m² (real pixel)
• Resolution: 32 pixels (L) × 16 pixels (H)
• Module Size: 320mm (L) × 160mm (H) × 25mm (D)
• Driving Mode: Constant current, 1/4 duty
• Mask Design: Pure black mask for enhanced contrast

Electrical and Optical Ratings

• Brightness: ≥6,000 cd/m²
• Viewing Angle:
  • Horizontal: 120°
  • Vertical: 120°
• Best Viewing Distance: ≥10 m
• Gray Scale: 16,384 levels per color
• Display Colors: 4.39 trillion colors
• Brightness Adjustment:
  100 grades via software or auto-sensor
• Max Power Consumption: 28 W

Control System

• Signal Input: Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
• Control Distance:
  • Ethernet cable: Up to 100m
  • Optical fiber: Up to 20km
• Supported VGA Modes: 800×600, 1024×768, 1280×1024, 1600×1200
• Refresh Rate: ≥1,920 Hz
• Frame Frequency: ≥60 Hz
• Gamma Correction: Adjustable from -5.0 to 5.0

Reliability

• Temperature Range:
  • Operating: -20°C to +60°C
  • Storage: -30°C to +70°C
• Humidity: 10% to 90% RH
• Lifetime: 100,000 hours
• MTBF: 5,000 hours
• Continuous Working: ≥72 hours
• Protection Grade: IP65
• Out of Control Pixel Rate: ≤0.01%
