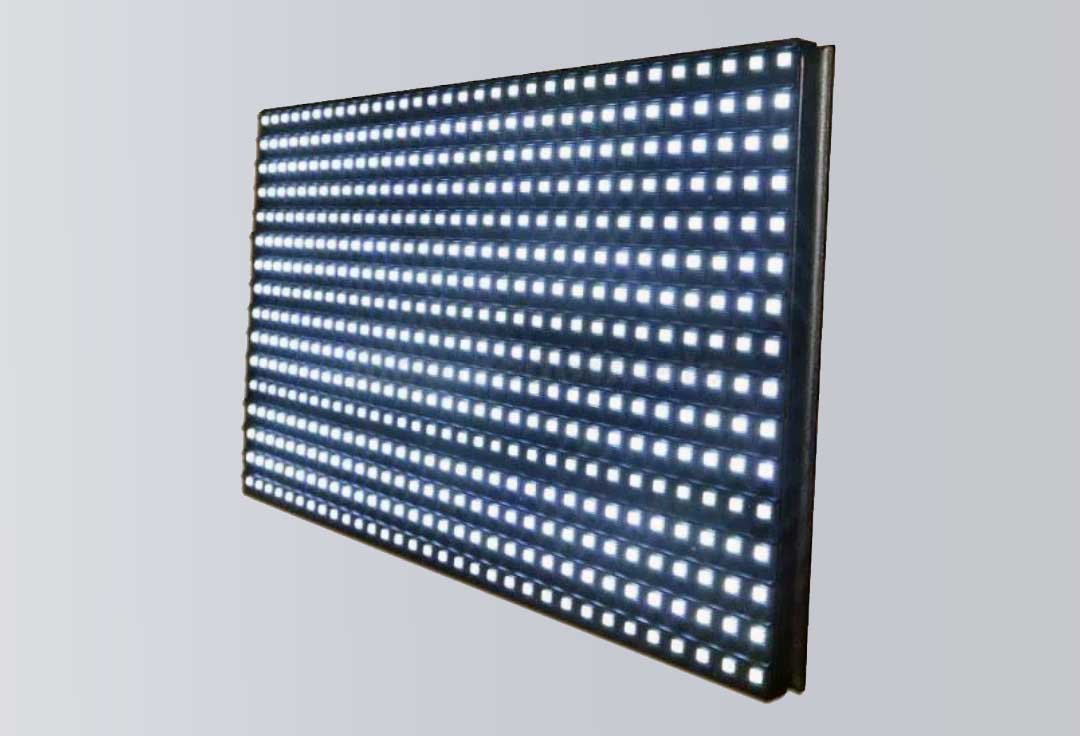

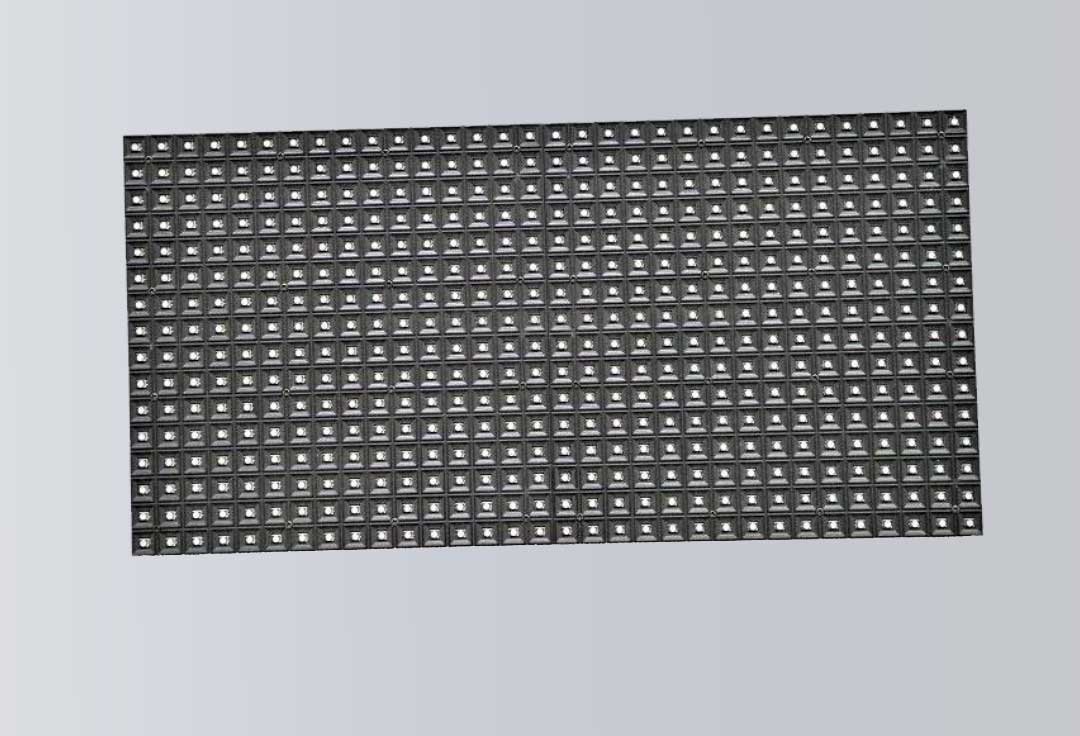

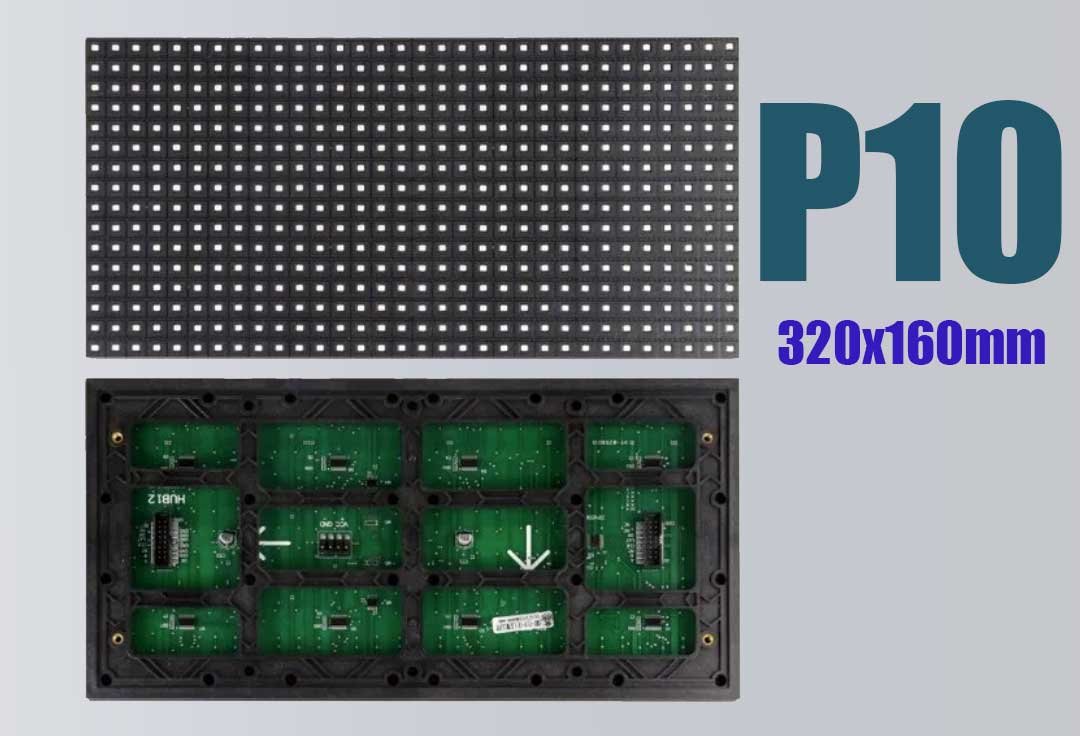

P10 SMD Single-Color White LED Display Panel Module, 32x16cm (320x160mm)

1,300.00

  • Model: P10 White LED Module
  • Pixel Pitch: 10 mm
  • Pixel Configuration: 1R

Description

P10 SMD Single-Color White LED Display Panel Module, 32x16cm (320x160mm)

Product Specifications:

  • Model: P10 White LED Module
  • Pixel Pitch: 10 mm
  • Pixel Configuration: 1R
  • LED Chip Brand: Epistar
  • Viewing Angles:
    • Horizontal: 80°
    • Vertical: 60°
  • Scan Mode: 1/4 Scan
  • Green Wavelength: 520-525 nm
  • Brightness: 6500 cd/m²
  • Pixel Resolution: 10,000 dots/m²
  • Refresh Rate: 2000 Hz
  • Max Power Consumption: 1302 W/m²
  • Average Power Consumption: 250-550 W/m²
  • Working Voltage: 5V DC (40A)
  • Power Supply Input: AC 110/220V
  • Module Dimensions (W×H): 320×160 mm
  • Display Type: Single Color (White)
  • LED Package: DIP Oval 346 Lamp
  • Operating Platforms: Asynchronous or Synchronous
  • Certifications: ETL, CE, RoHS, TUV, FCC Class A, ISO 9001:2008
  • Lifespan: ≥100,000 hours

P10 SMD2835 1/4 Scan LED Display Module Specifications and Features

Features

  • High-Quality Indoor Display Solution:
    Ideal for fixed installation in commercial environments.
  • Standard Module Design:
    • Module size: 320x160mm, part of the 320x160mm standard series.
    • Easy for upgrades and replacements with existing installations.
  • Efficient Design:
    • Reasonable PCB layout ensures excellent heat dissipation for a longer lifespan.
    • Equipped with high-quality SMD2835 LEDs for superior performance.


Module Parameters

  • Pixel Pitch: 10 mm
  • Pixel Configuration: SMD3535 Black LEDs
  • Pixel Density: 10,000 pixels/m² (real pixel)
  • Resolution: 32 pixels (L) × 16 pixels (H)
  • Module Size: 320mm (L) × 160mm (H) × 25mm (D)
  • Driving Mode: Constant current, 1/4 duty
  • Mask Design: Pure black mask for enhanced contrast

Electrical and Optical Ratings

  • Brightness: ≥6,000 cd/m²
  • Viewing Angle:
    • Horizontal: 120°
    • Vertical: 120°
  • Best Viewing Distance: ≥10 m
  • Gray Scale: 16,384 levels per color
  • Display Colors: 4.39 trillion colors
  • Brightness Adjustment:
    100 grades via software or auto-sensor
  • Max Power Consumption: 28 W

Control System

  • Signal Input: Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
  • Control Distance:
    • Ethernet cable: Up to 100m
    • Optical fiber: Up to 20km
  • Supported VGA Modes: 800×600, 1024×768, 1280×1024, 1600×1200
  • Refresh Rate: ≥1,920 Hz
  • Frame Frequency: ≥60 Hz
  • Gamma Correction: Adjustable from -5.0 to 5.0

Reliability

  • Temperature Range:
    • Operating: -20°C to +60°C
    • Storage: -30°C to +70°C
  • Humidity: 10% to 90% RH
  • Lifetime: 100,000 hours
  • MTBF: 5,000 hours
  • Continuous Working: ≥72 hours
  • Protection Grade: IP65
  • Out of Control Pixel Rate: ≤0.01%

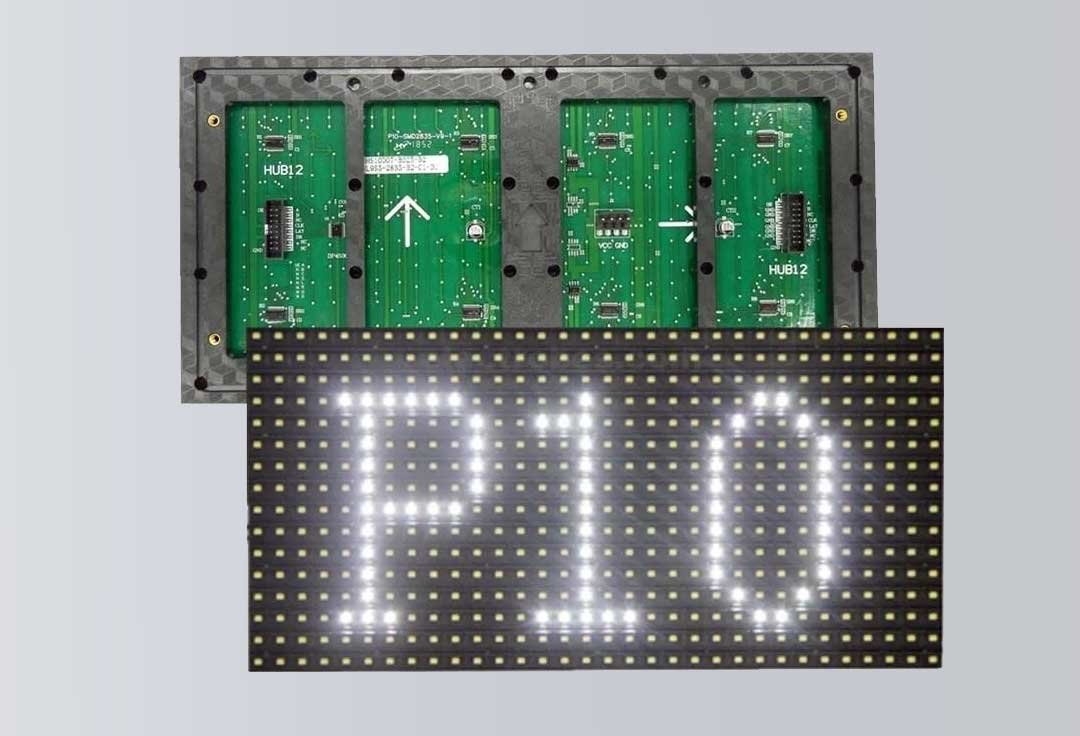

P10 Single Color Module

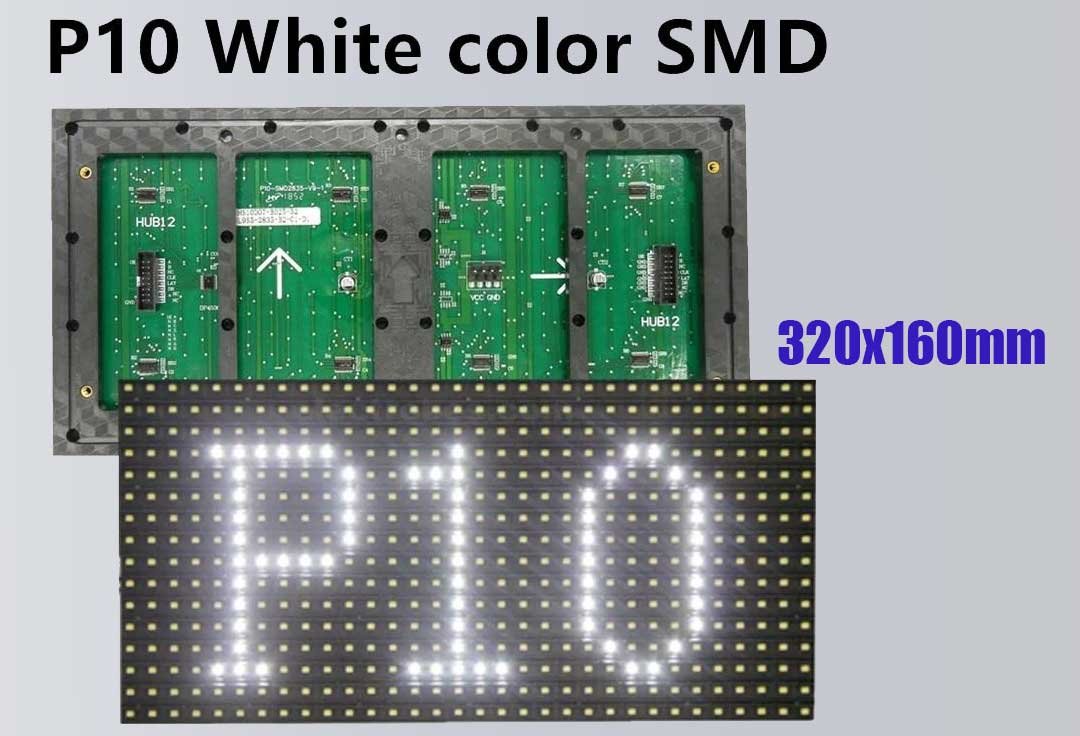

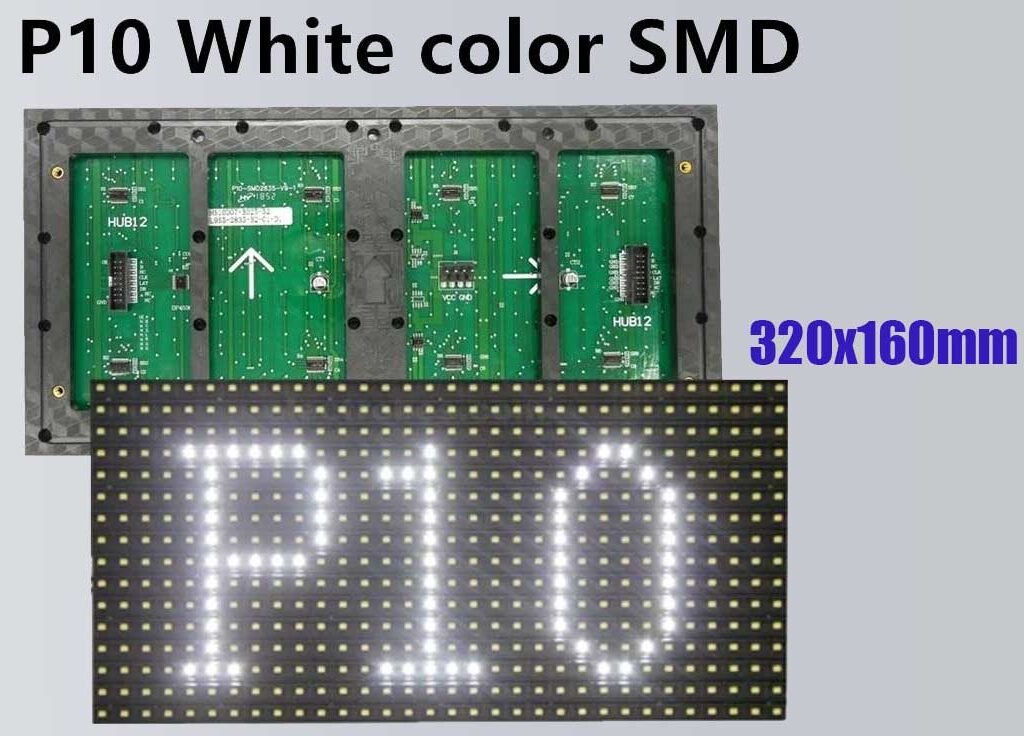

P10 Single Color Module
