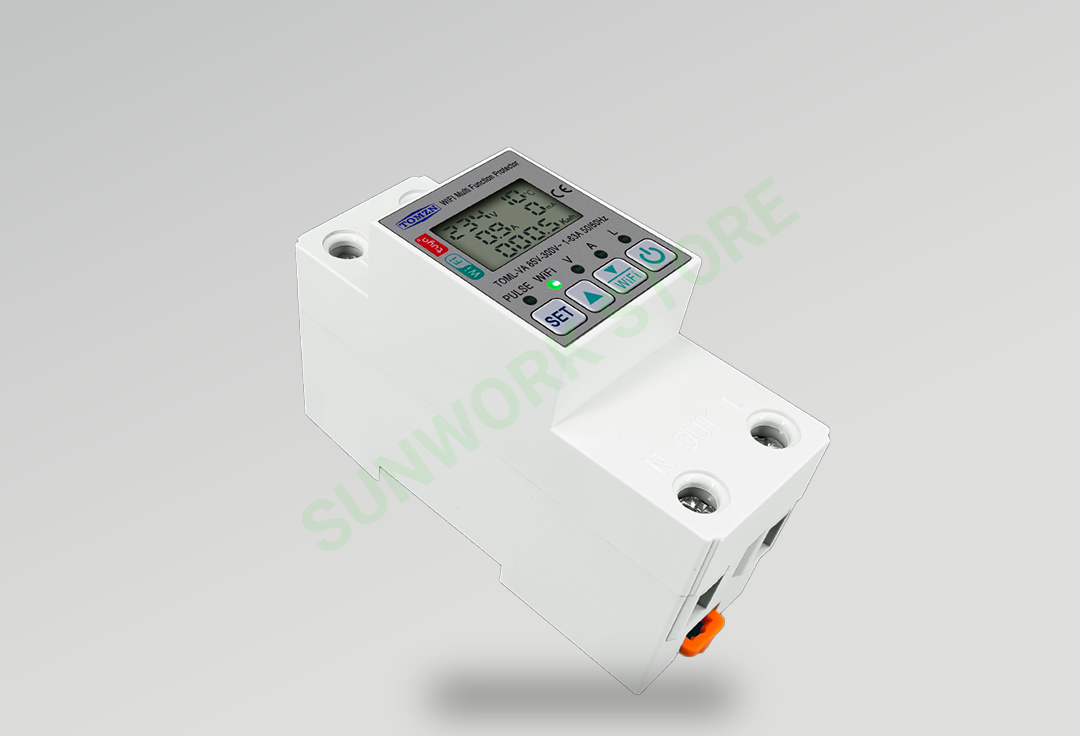

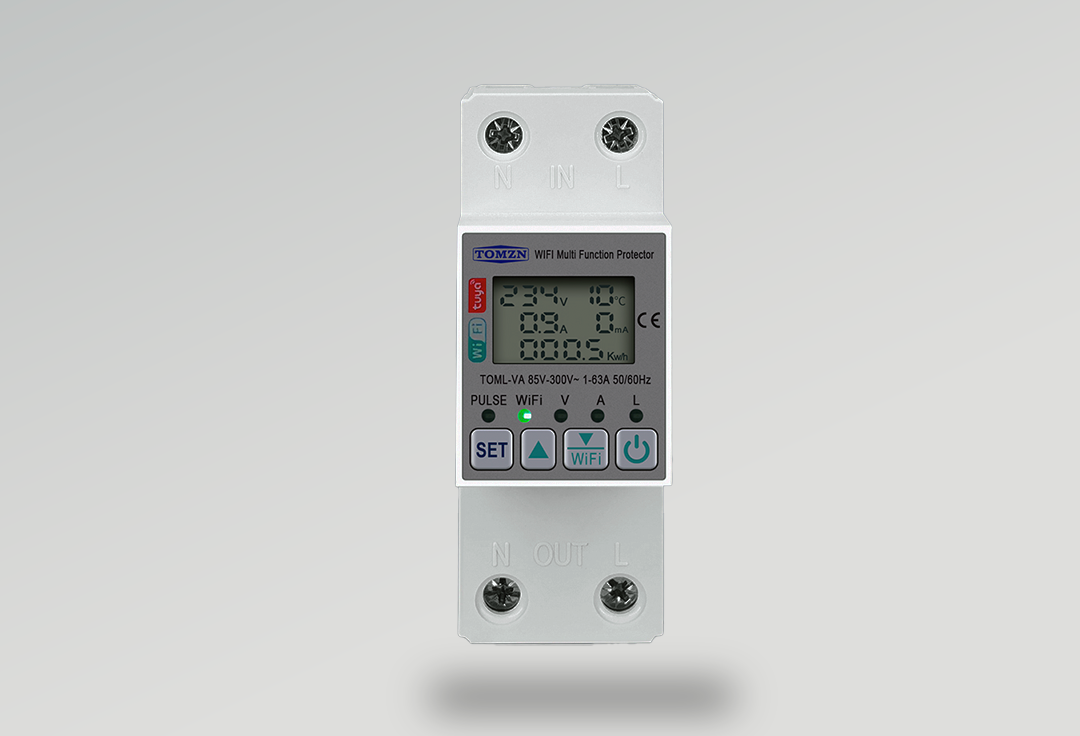

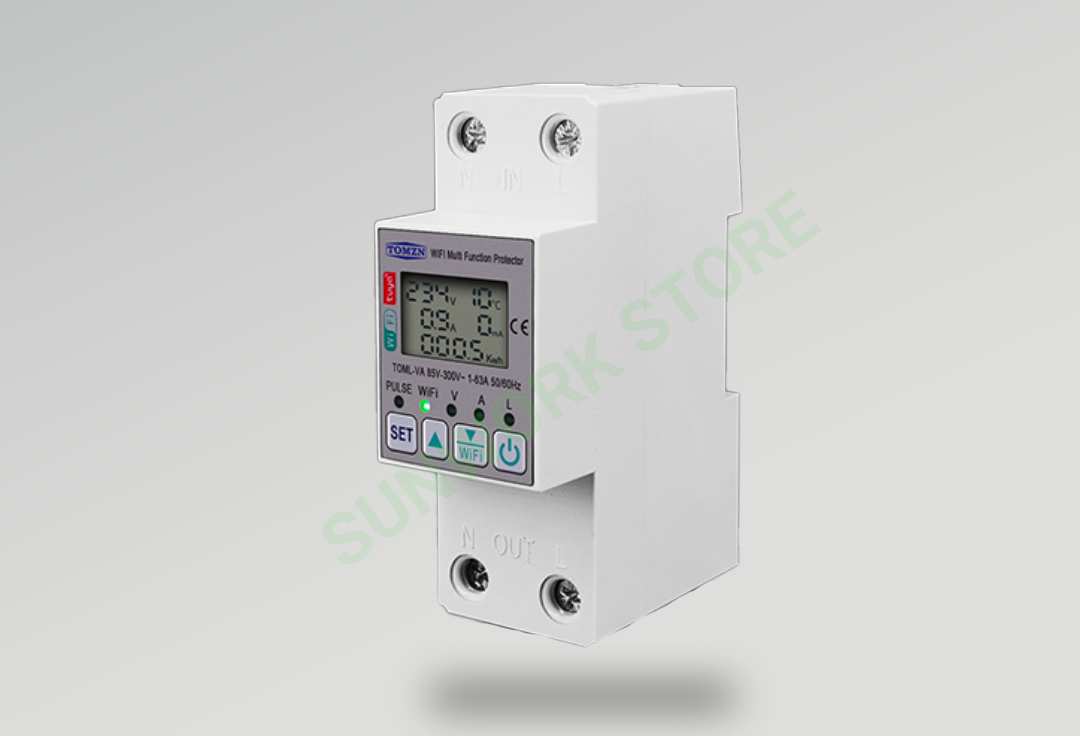

TOMZN SMARTLIFE WIFI Energy Meter voltage current and leakage protection 63A 220V

Description

TOMZN SMART LIFE WIFI Energy Meter

• Remote control ON/OFF at anytime from anywhere by phone.

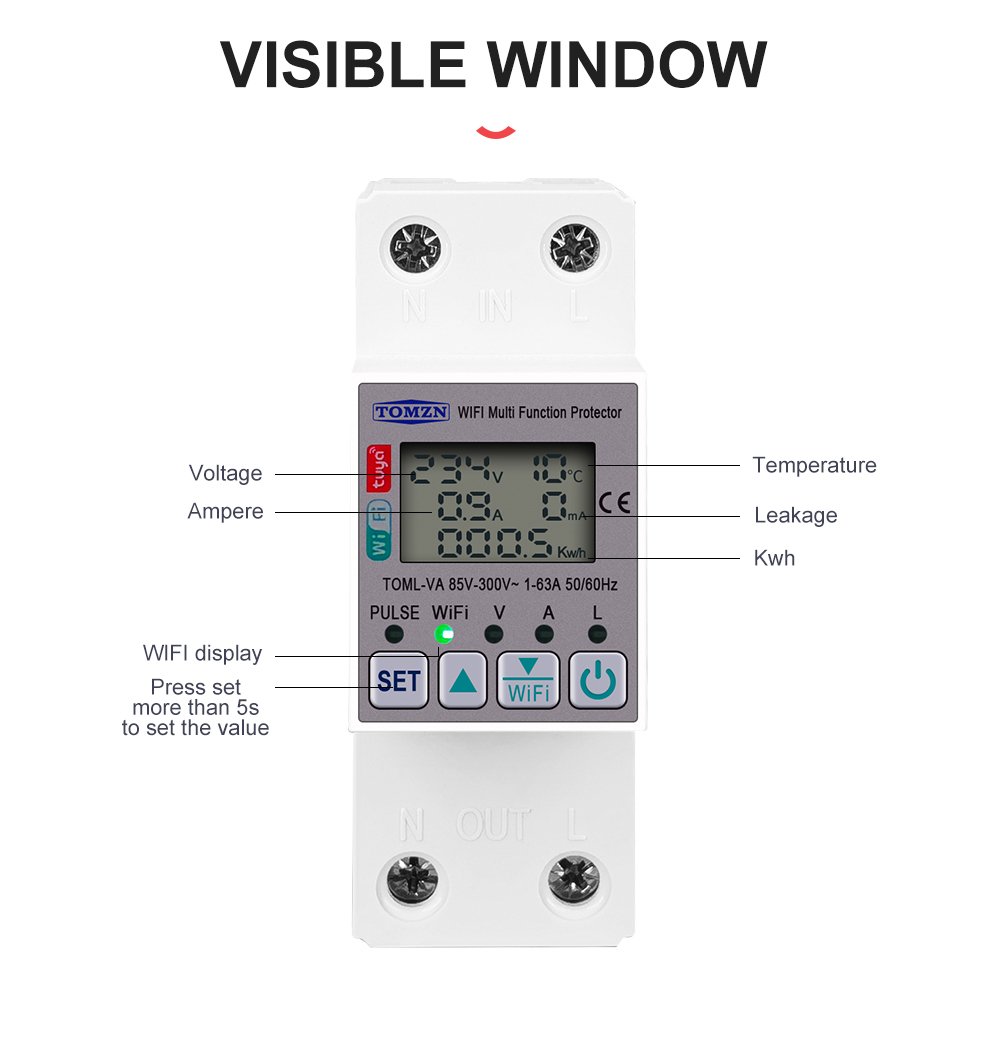

• Review current, voltage, leakage current, and total kWh on the phone
• Timer function in smart life TUYA app
• Can set over voltage/under voltage/over current /leakage current/ Temperature/in-app or can set these by manual

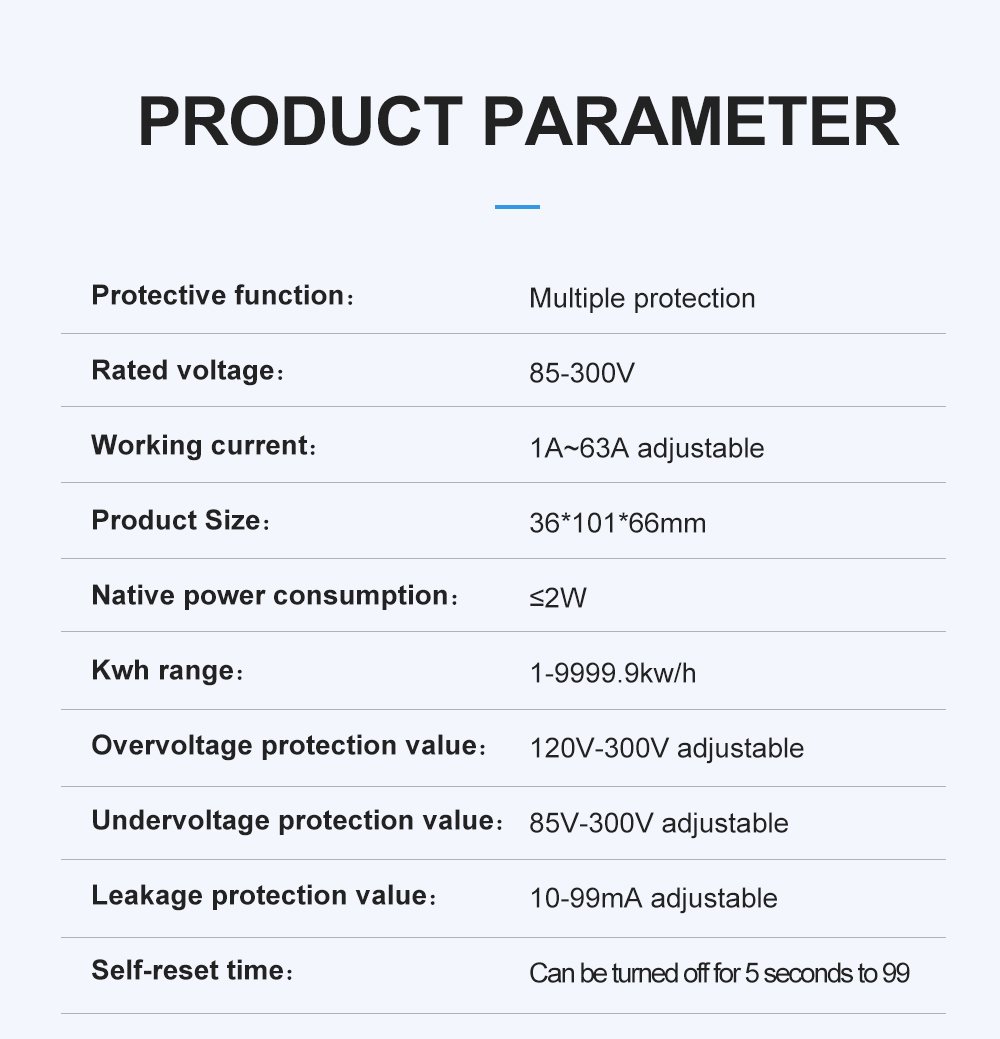

• Under voltage protection 85V-300V (adjustable) (default: 170V)
• Over-voltage protection 120V-300V (adjustable) (default: 275)
• Over-current protection 1A-63A (adjustable) (default: 63A)
• Leakage protection value: 10-99mA
• Prepaid function
• Power consumption of less than 2W

Note: The product can’t reconnect after protection/ Manual On after protection through the Phone

More on Page:

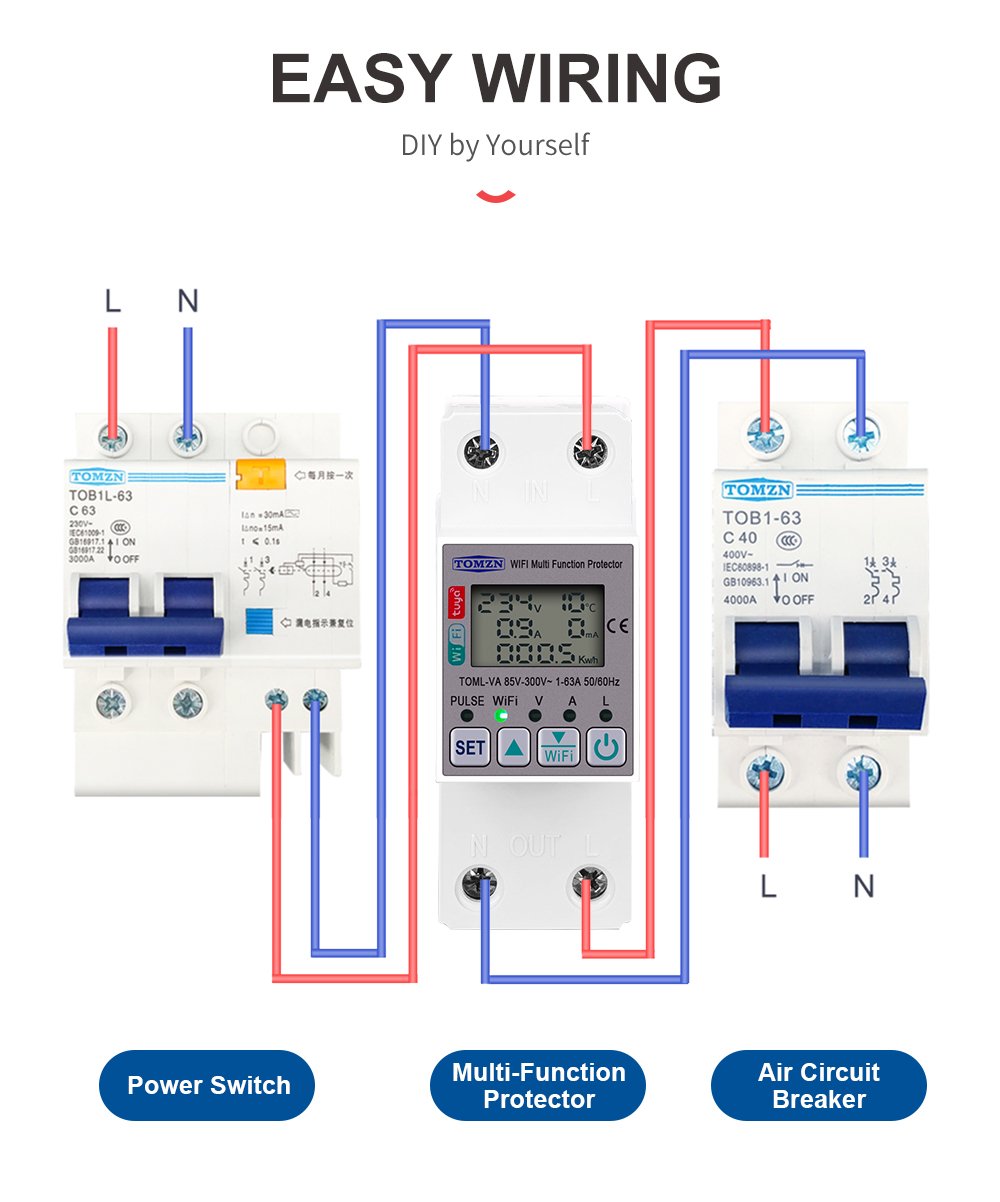

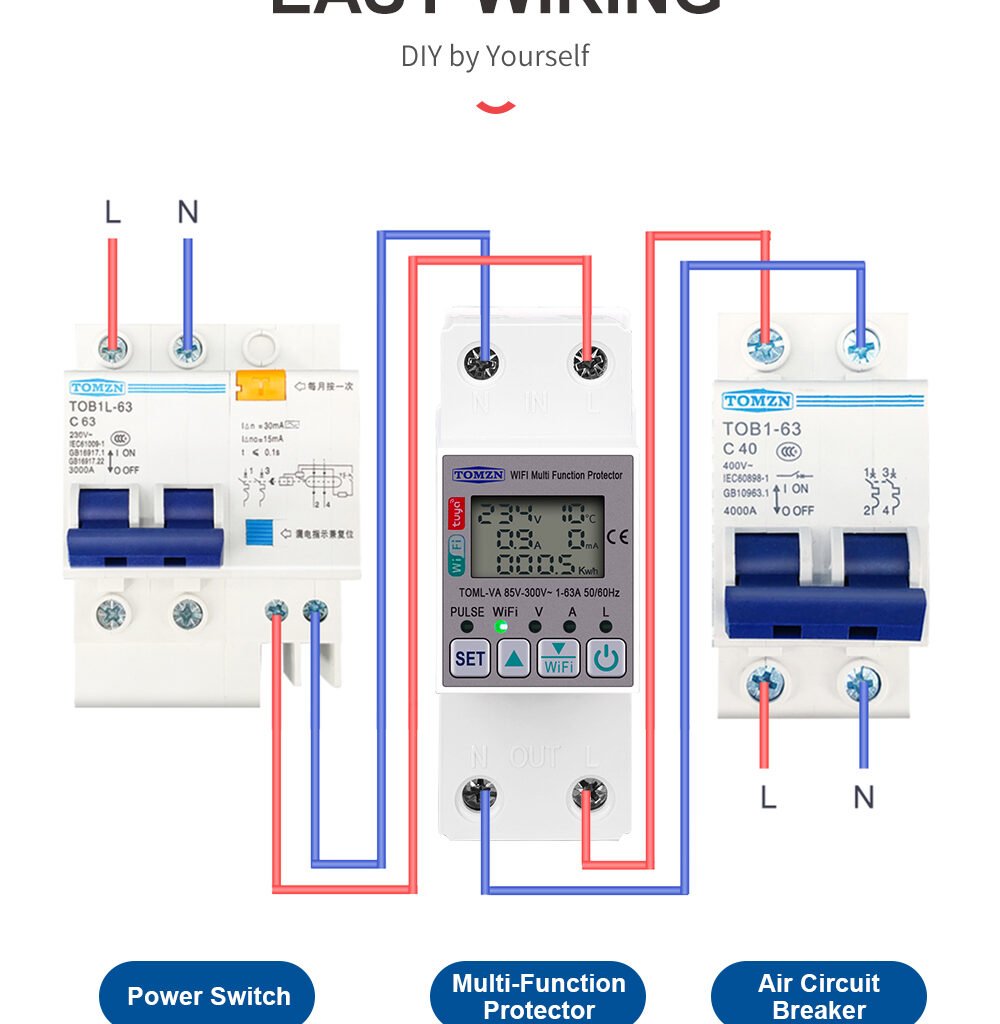

Connection Diagram:
