Description

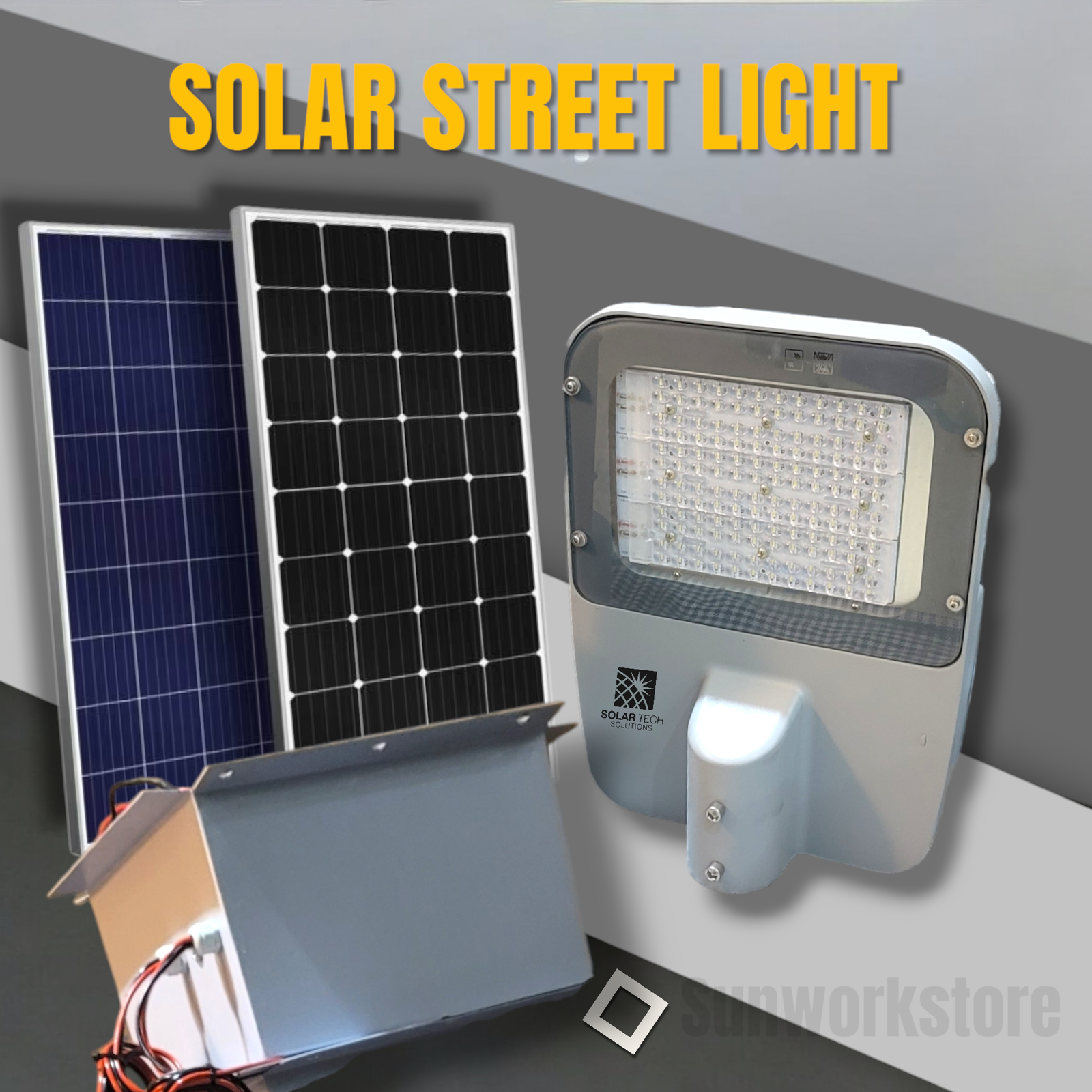

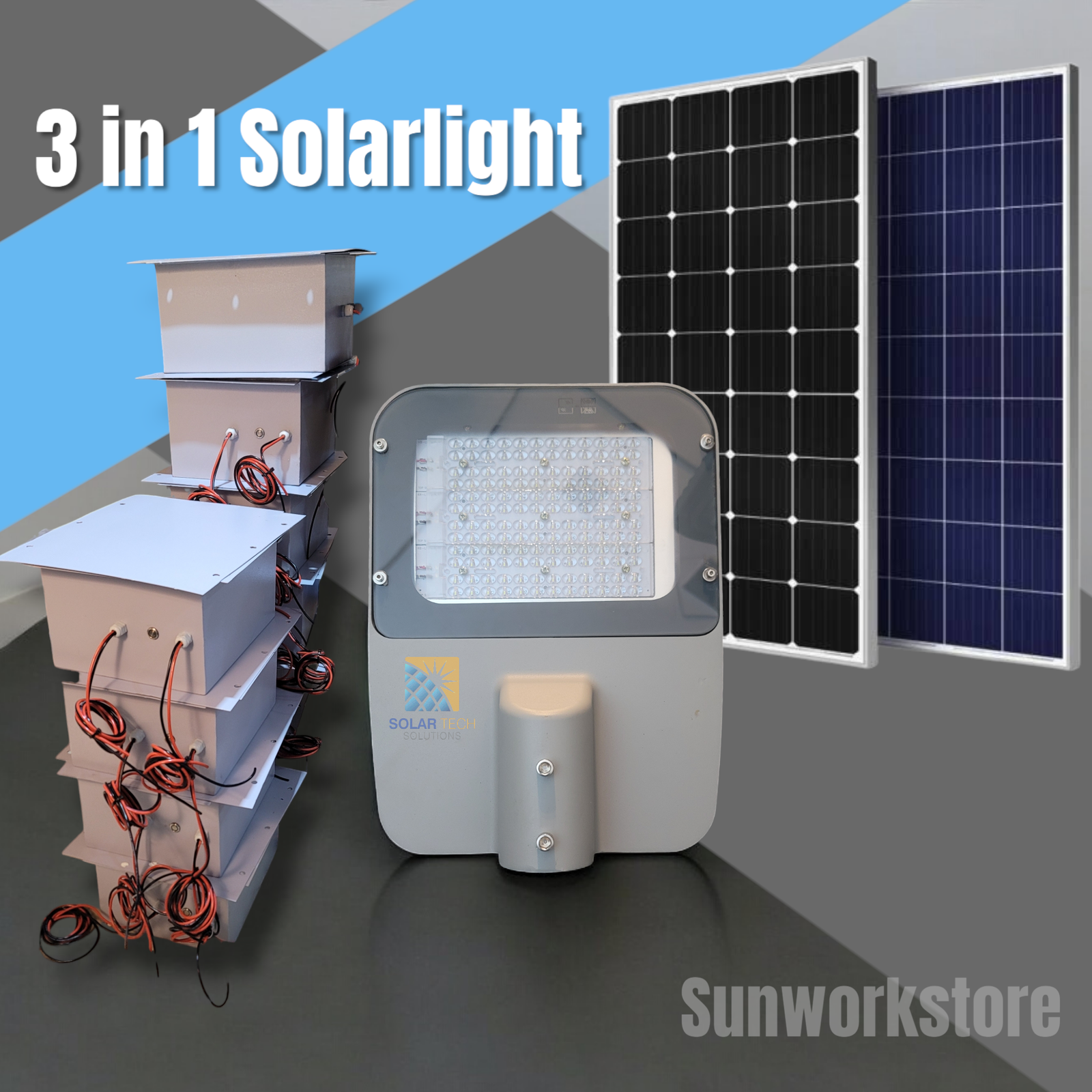

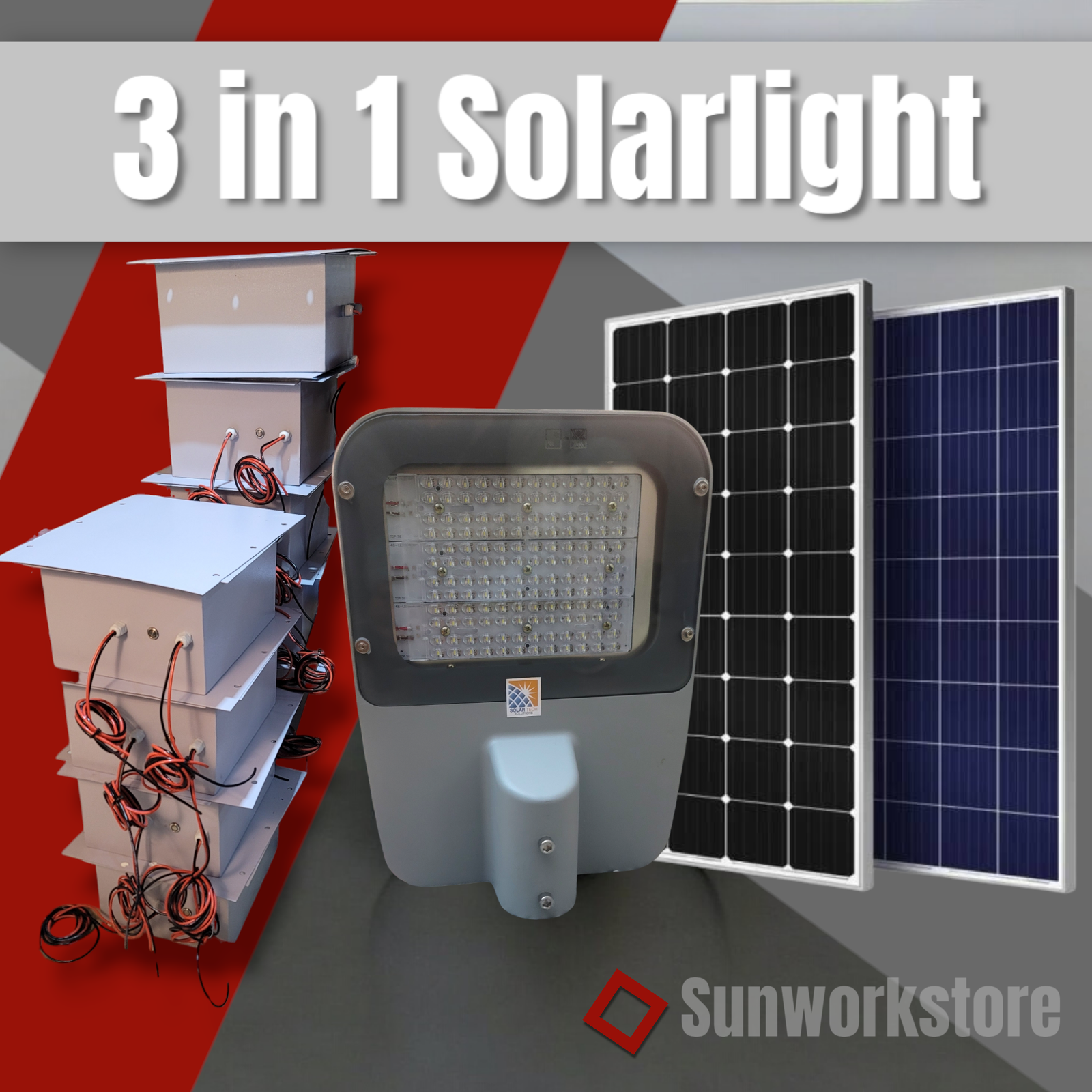

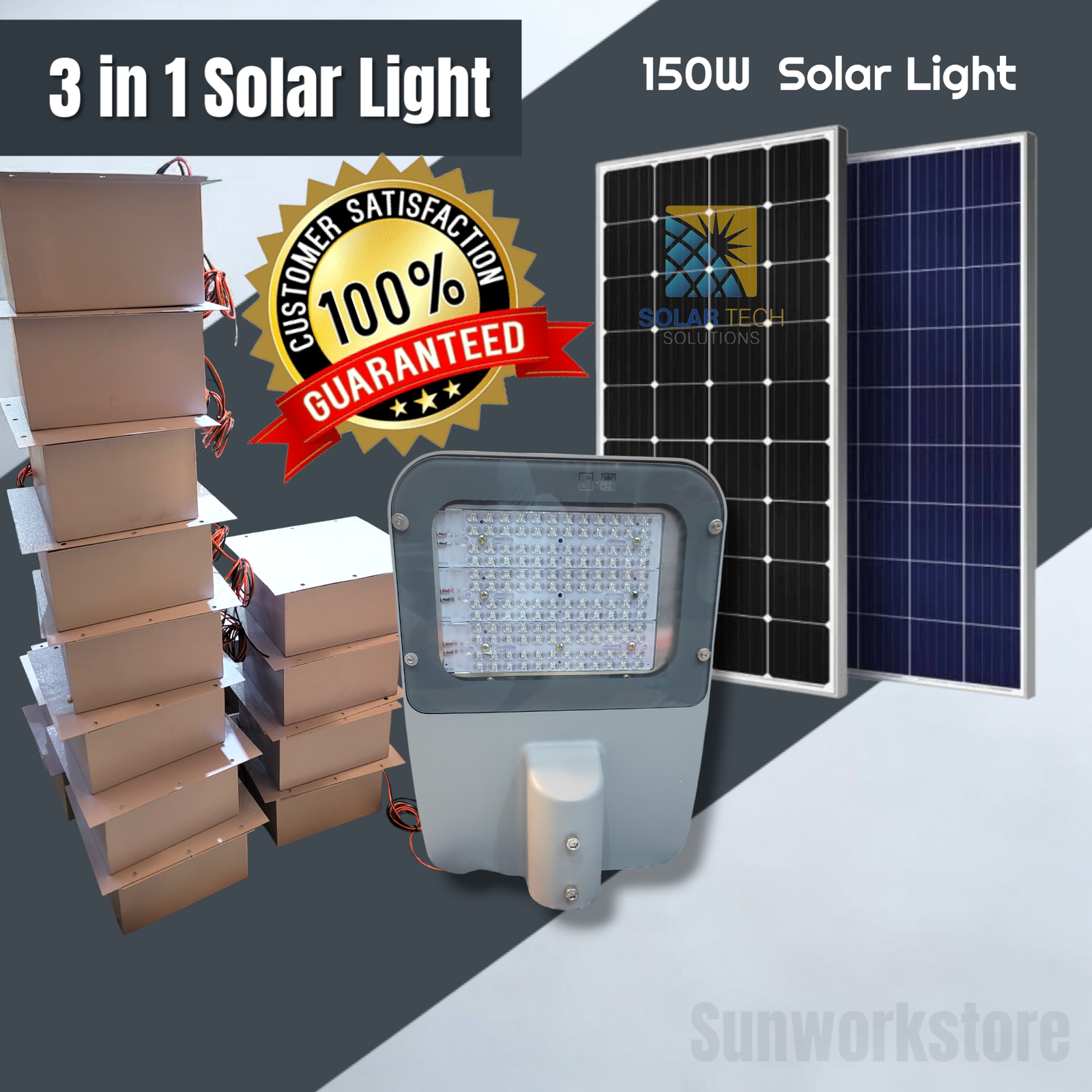

3 in 1 Solar Light- Solar Street Light Supreme Series Lithium Battery Module Mppt Solar Light Controller
Product Specifications:
| Component | Specification |
|---|---|
| Solar Panel | Type: Monocrystalline |
| Capacity: 450W | |
| Voltage: 24V | |
| Efficiency: ≥ 21% | |
| Frame: Aluminum alloy with tempered glass | |
| Durability: Wind, snow, and hail resistant (up to 5400 Pa) | |
| MPPT Solar Controller | Model: 20A MPPT Controller |
| Input Voltage: 18–48V | |
| Output Voltage: 12V/24V (Auto-sensing) | |
| Maximum Charging Current: 20A | |
| Load Control: Dusk-to-dawn with timer and dimming options | |
| Efficiency: ≥ 98% | |
| Protections: Overcharge, deep discharge, short circuit, reverse polarity | |
| Display/Interface: LED indicators or LCD for real-time status monitoring | |
| Lithium Battery | Type: Lithium Iron Phosphate (LiFePO4) |
| Capacity: 45Ah | |
| Nominal Voltage: 24V | |
| Energy Storage: 1080Wh | |
| Cycle Life: ≥ 3000 cycles at 80% depth of discharge | |
| Battery Management System (BMS): Integrated with overcharge, over-discharge, and temperature protections | |
| Operating Temperature: -20°C to +60°C | |
| Battery Box | Size: 12x10x8 inches |
| Material: Powder-coated metal | |
| Color Options: Grey and Black | |
| LED Light Fixture | Power: 80–120W (configurable based on lighting needs) |
| Luminous Efficiency: ≥ 150 lm/W | |
| Color Temperature: 3000K–6500K (adjustable) | |
| Lifespan: ≥ 50,000 hours | |
| Material: Die-cast aluminum with polycarbonate lens | |
| IP Rating: IP65 (waterproof and dustproof) | |
| Additional Features | Smart Control Options: Remote monitoring or app-based configuration (optional) |
| Auto ON/OFF: Light sensor-based operation | |
| Backup Time: 2-3 days without sunlight | |
| Applications | Walls and fences, temporary structures, retrofitting existing setups, ground-mounted installations |
| Battery Box | Size: 12x10x8 inches |
| Material: Powder-coated metal | |
| Color Options: Grey and Black |
