Description

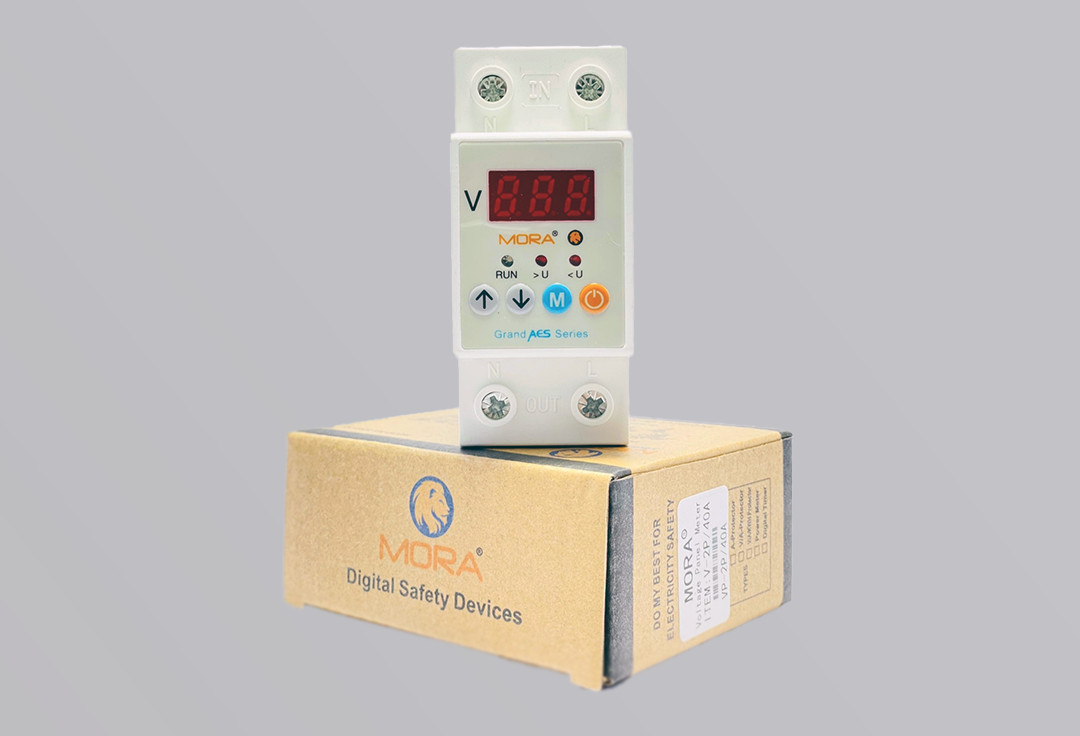

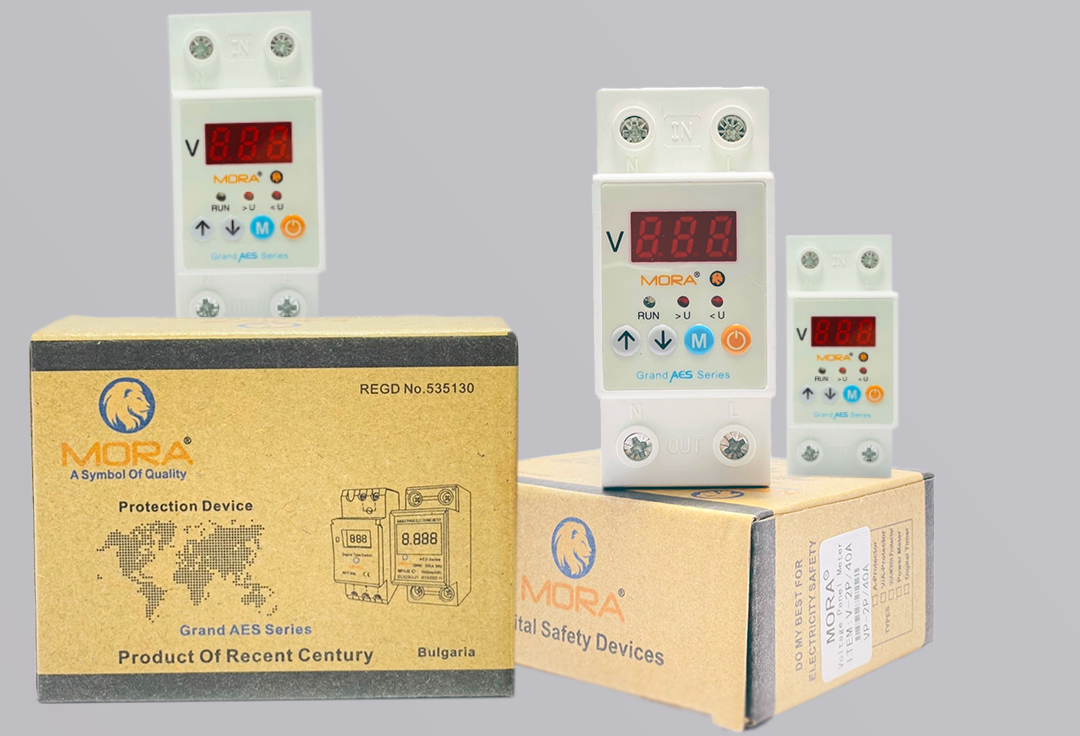

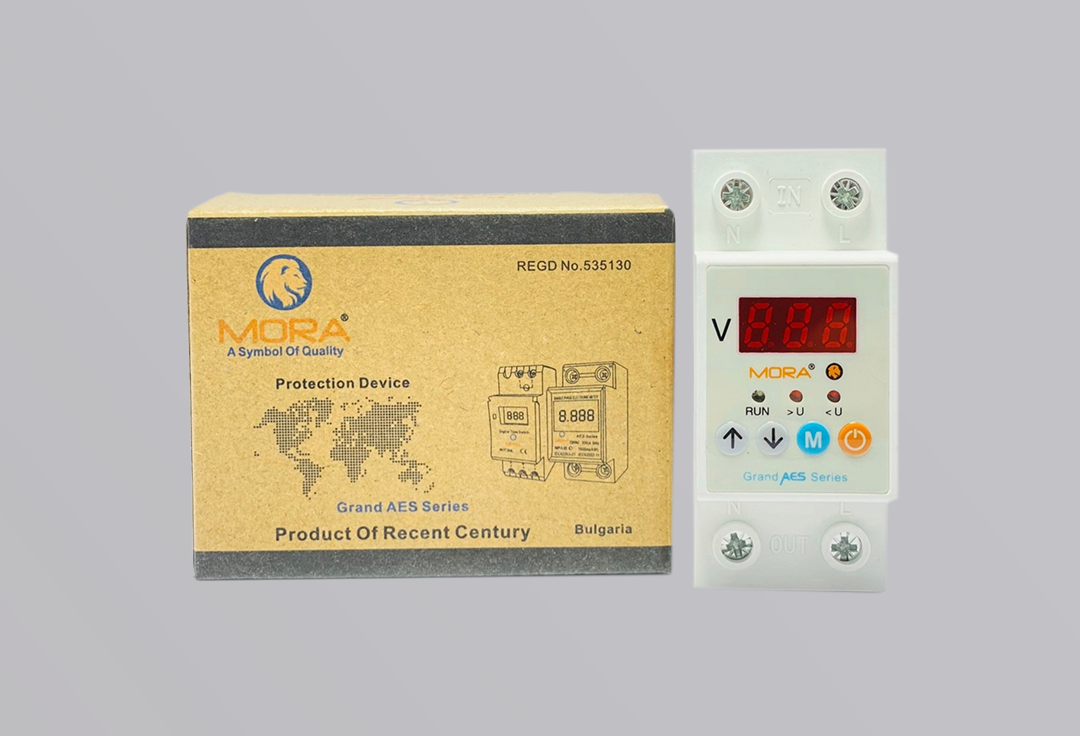

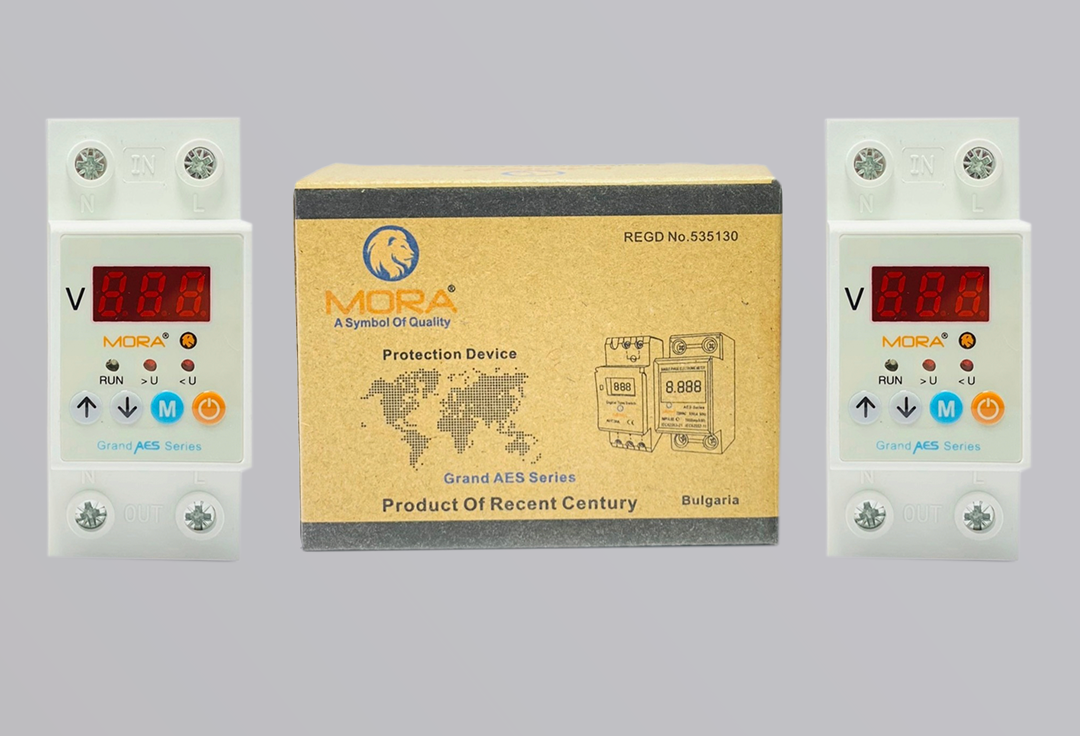

MORA Volt Protector Grand AES Series Under Over Voltage Protection 63A Digital Display

Product Specifications:

• V-protector
• Brand: Mora
• Amp: 63A
• Rated working current: 63A
• Overvoltage protection value: AC 230V – AC 275V ; Factory default 275V
• Undervoltage protection value: AC 160V – AC 220V; Factory default 175V
• Automatic closing delay: 0-30 seconds; Factory default 30 seconds
• Display range of effective voltage 70-400V
• Withstand lightning surge voltage in the range of 5kV
• 8 modular contour design and guide-rail mounting
• Rated working voltage: AC 230V, 50Hz
• Action time: 0-30 seconds; Factory default 30 seconds
• Own power consumption <1.5 watt
• Motor Mechanical life: > 100,000 times
• Dimensions: 80 x 37 x 66 mm (L x W xH)
• Ambient temperature = standard
• Working environment temperature range: -25 C ~ 55 C
• Relative humidity: 45 – 90% RH: 40 C
• Latitude: <2000m
• Pollution level: 2 class
