Description

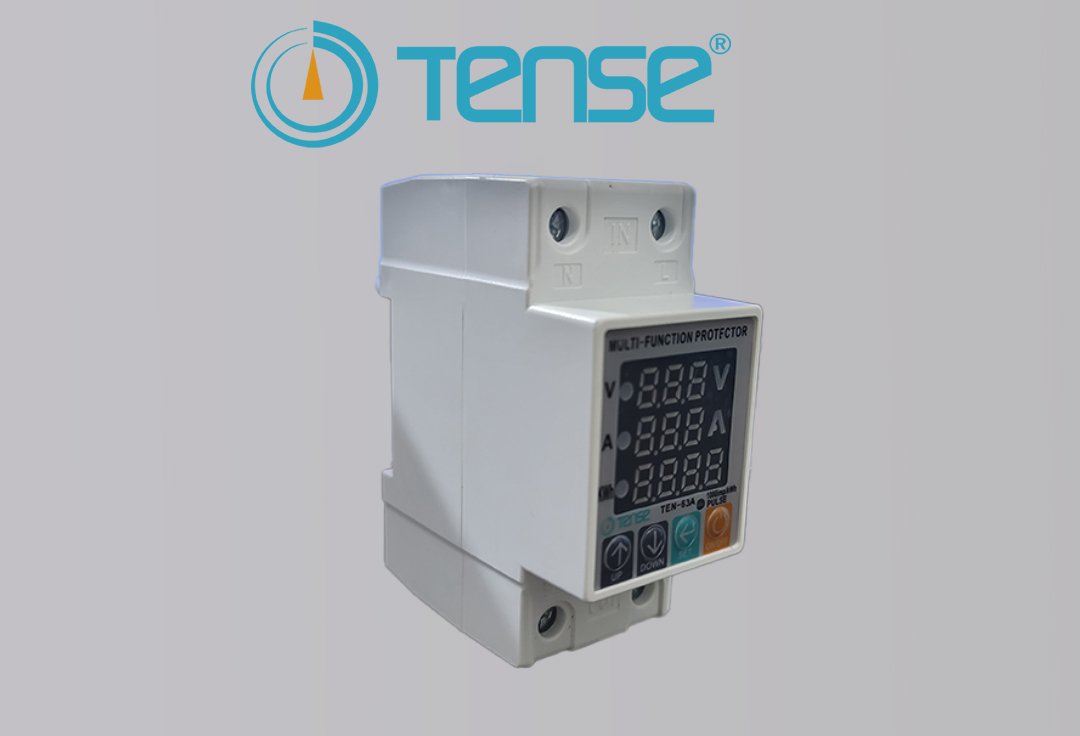

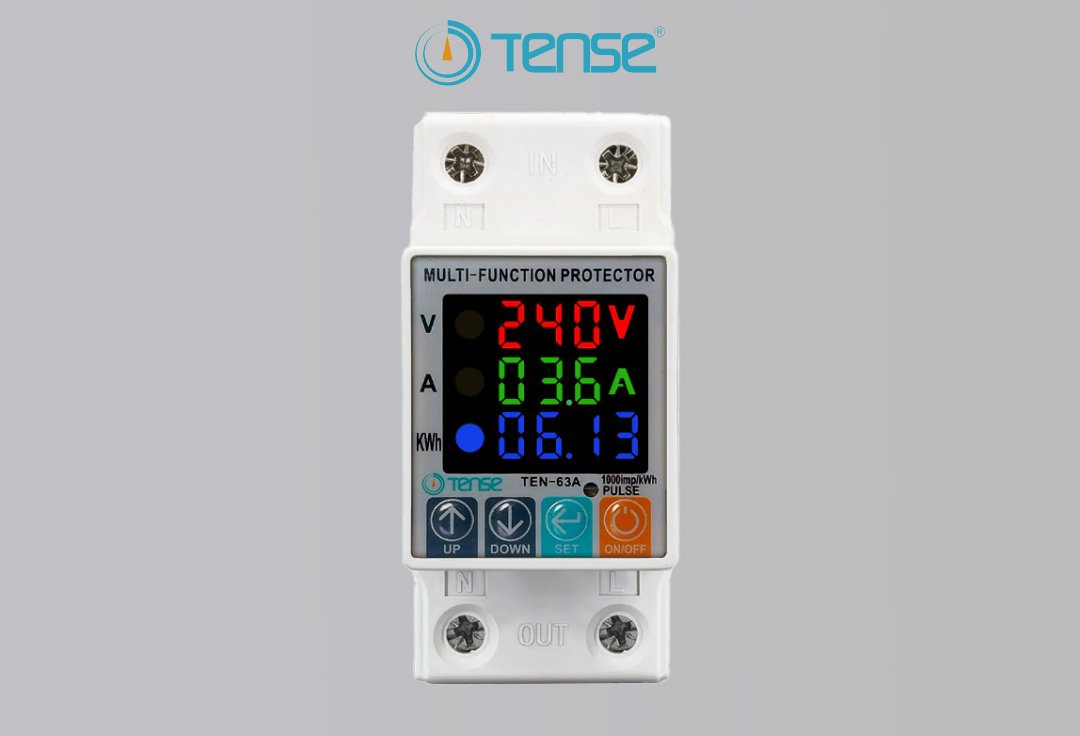

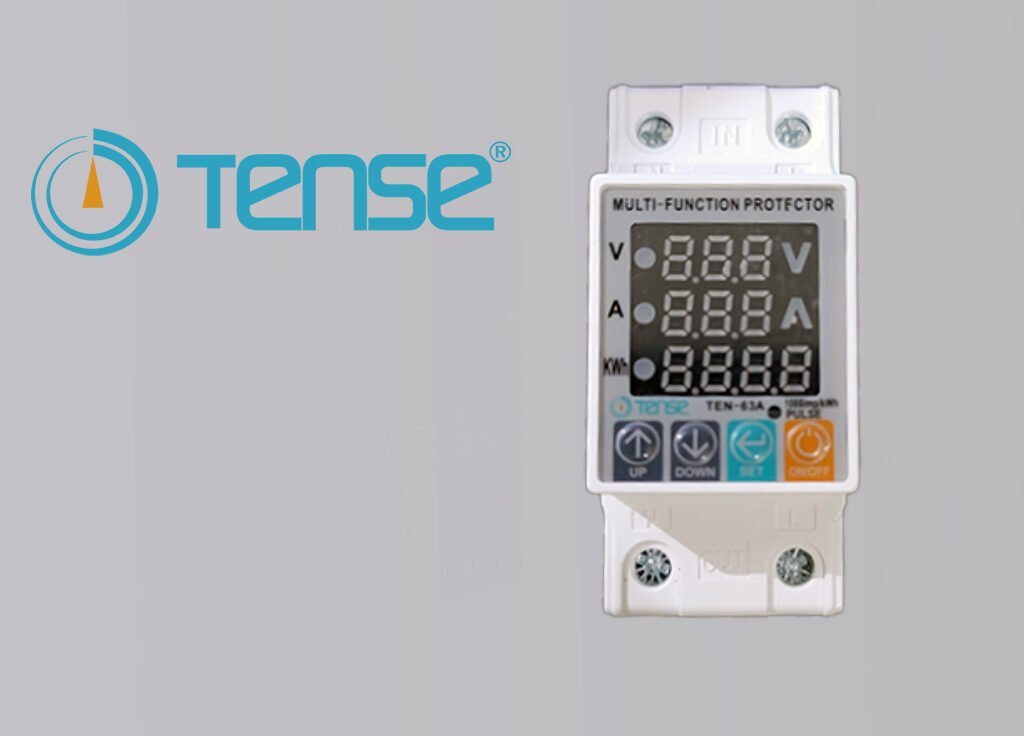

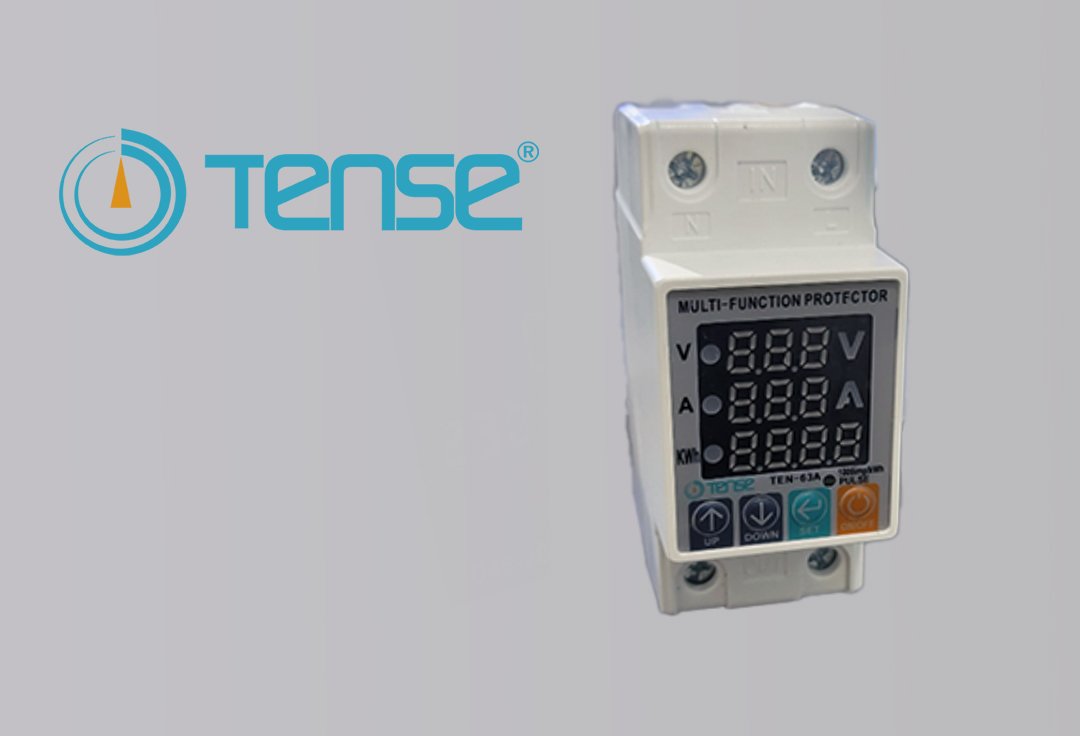

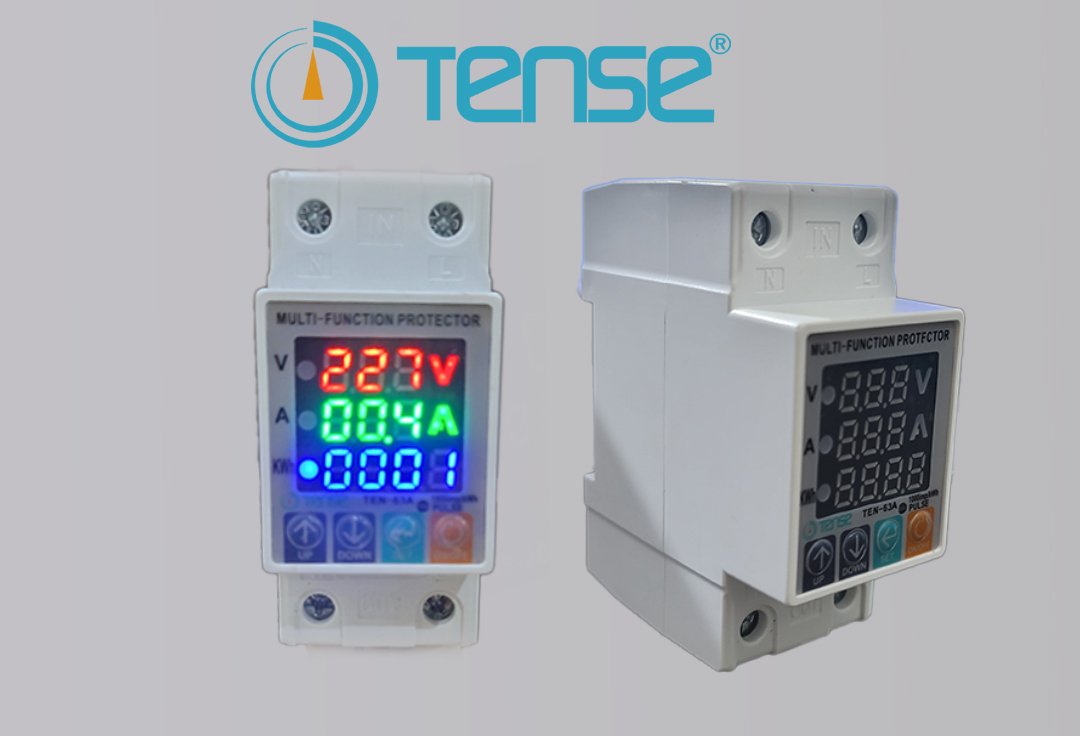

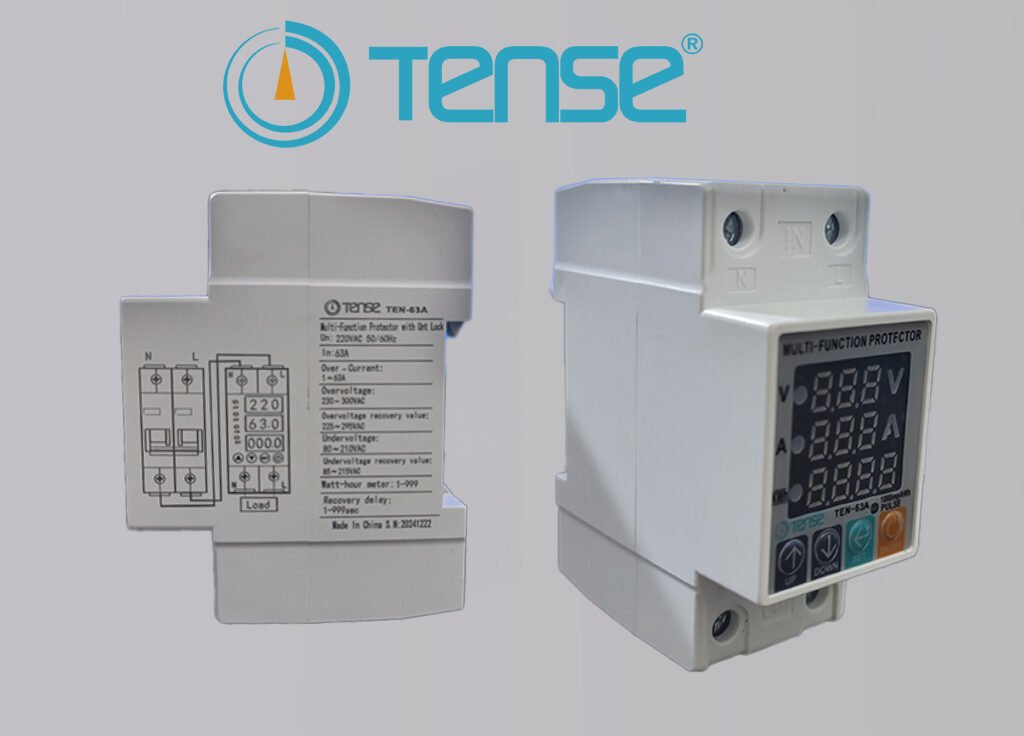

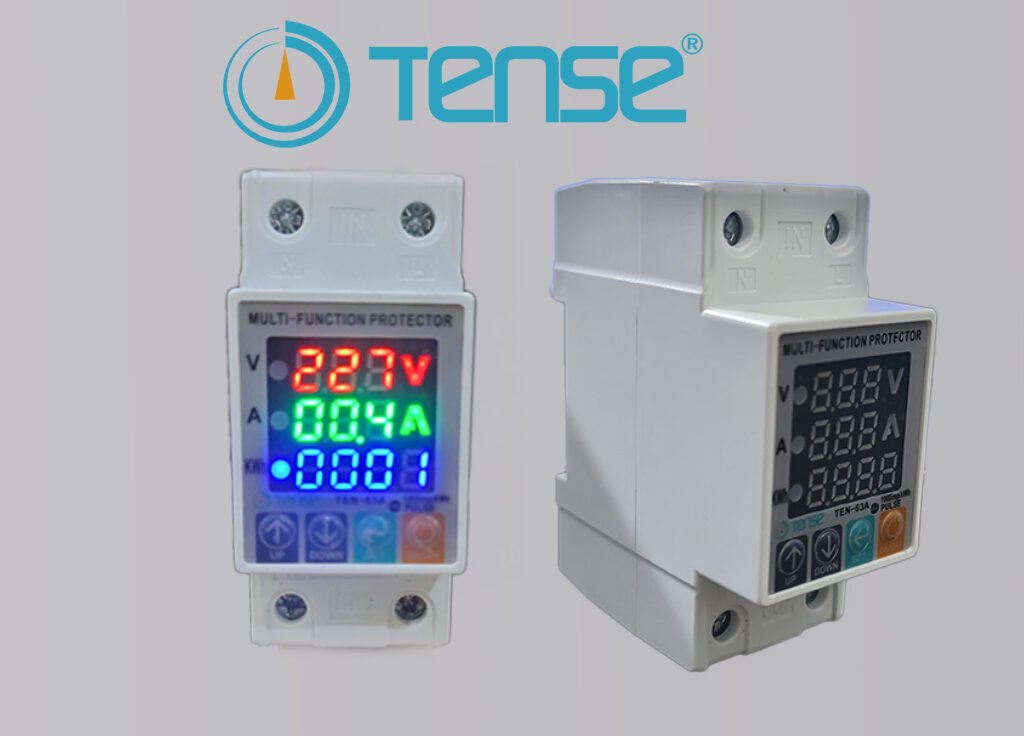

3 in 1 TENSE Smart Circuit Breaker Switch Mini Digital Display Modular Voltage Meter 63A 220V with KWH Lock

Product Specifications:

Electrical Specifications:

Voltage Rating: 220V AC (±10%)
Current Rating: Up to 63A
Brand: TENSE
Frequency: 50/60Hz
Power Consumption Display: kWh (Kilowatt-hour)
Voltage Measurement Range: 80V – 300V AC
Current Measurement Range: 0 – 63A
Power Measurement Range: 0 – 13.8kW
Accuracy: ±1%

Protection Features:

✅ Overvoltage Protection – Automatically cuts off power if voltage exceeds a preset value.
✅ Undervoltage Protection – Shuts down if voltage drops below a set limit.
✅ Overcurrent Protection – Trips the circuit if current exceeds the rated limit.
✅ Short Circuit Protection – Prevents electrical hazards due to short circuits.
✅ Power Consumption Lock (KWh Lock) – Prevents accidental reset of energy data.

Physical & Installation:

Mounting: DIN Rail (35mm)
Display: LED/LCD Digital Display
Control Buttons: Up, Down, and Reset for configuration
Enclosure Material: Flame-retardant ABS plastic
Operating Temperature: -20°C to 60°C
Humidity: ≤ 95% RH (non-condensing)
Dimensions: Compact design for modular panel installation

Functionality & Application:

🔹 Real-time Monitoring – Shows Voltage (V), Current (A), and Power (kWh).
🔹 Energy Management – Ideal for tracking energy usage in homes and businesses.
🔹 Solar System Compatible – Can be used to monitor load consumption in solar installations.
🔹 Industrial & Household Use – Protects electrical equipment from voltage fluctuations.
