Unleash the Power of Solar: 5 High-Performing MPPT Solar Charge Controller

The charge controller is an essential component of the solar system that regulates and controls the current between the solar panels and the battery bank. Its main function is to manage the charging process and ensure the batteries receive the optimal amount of charge while protecting them from over-charging over-discharging and other potential problems.

Charge controllers are commonly used in on-grid and off-grid solar systems. They come in a variety of types, including pulse width modulation (PWM) controllers and Maximum power point tracking (MPPT) controllers. The PWM charge controller works by reducing the voltage of the solar panels to match the voltage of the battery during charging. They are more basic and economical, suitable for small systems.

MPPT charge controllers, on the other hand, use advanced electronics to monitor the solar array’s maximum power point and convert excess voltage into additional charging current. This increases efficiency and the ability to get more power from solar panels, especially in cold or low-light conditions. MPPT controllers are generally more expensive but offer more performance.

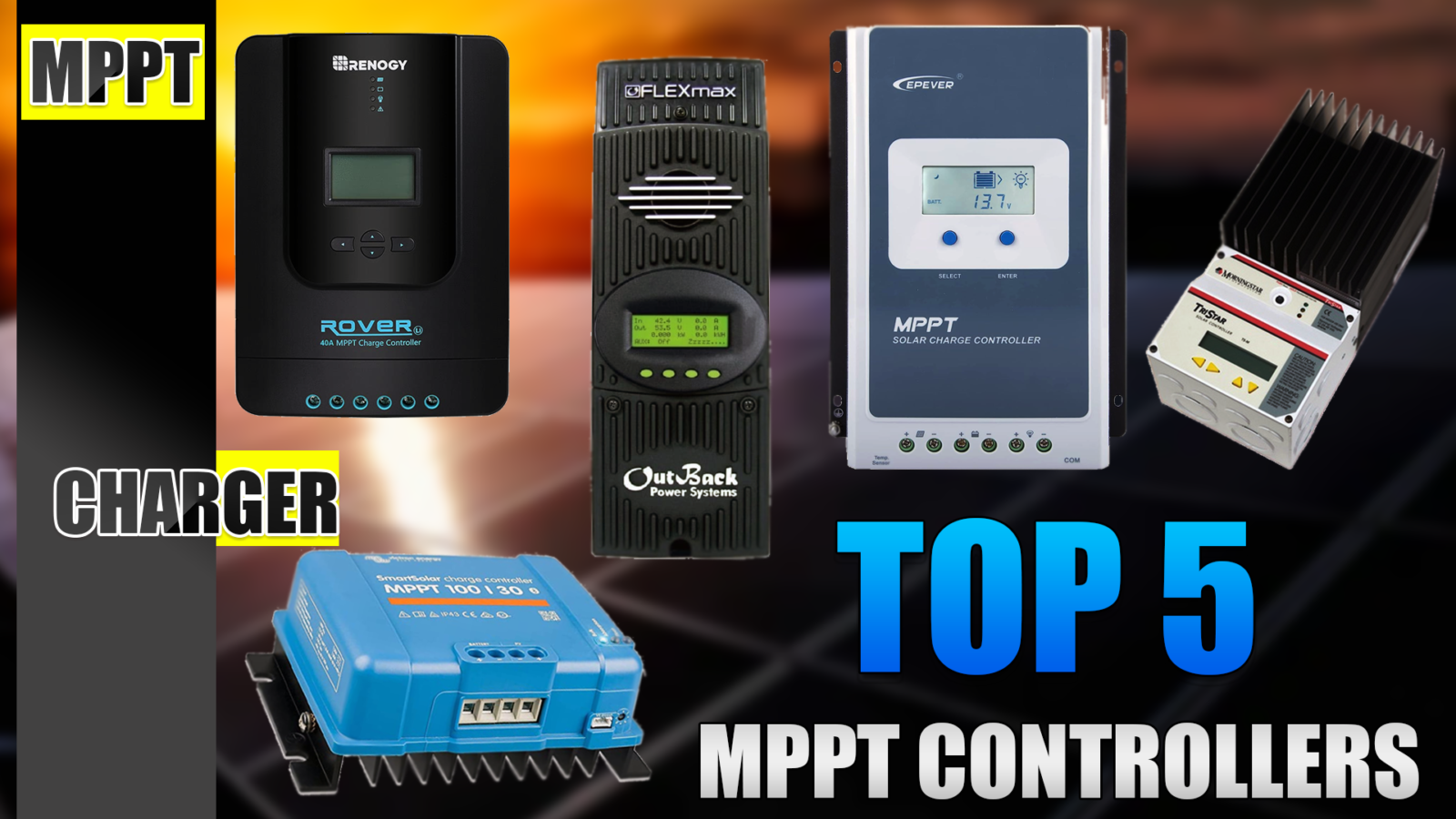

Here are five highly regarded MPPT solar charge controllers known for their efficiency, features, and performance:

Morningstar TriStar MPPT:

Morningstar is a trusted brand and TriStar MPPT controllers are known for their high-quality design and reliability. It offers advanced MPPT technology, a wide input voltage range, and comprehensive protection functions.

Victron Energy SmartSolar MPPT:

Victron Energy is a well-known manufacturer and its SmartSolar MPPT controllers are very popular because of their efficiency and versatility. They offer excellent MPPT performance, advanced tracking algorithms, and remote monitoring capabilities.

The Victron Mppt Solar Controller is a multi-stage solar charge controller based on an adaptive charging algorithm for your battery. With the latest and fastest technology, this charge controller maximizes energy capture from your solar panels, intelligently controlling to reach full charge in the shortest time possible. It is even capable of recharging a depleted battery from 0 volts.

Easily program the charger for any type of battery using “presets” for common battery types or by creating your own 100% custom settings.

Connectivity – with built-in Bluetooth functionality, you can monitor and control your MPPT wirelessly using the Victron Connect app. Or, connect to a Victron Energy GX device using an EV. Live cable (sold separately) and monitor from anywhere in the world using VRM.

The smart charging output feature is a game changer by preventing damage from running out of battery. You can configure the voltage at which Victron Energy SmartSolar disconnects the load, preventing over-discharge of the battery.

Outback Power FM80 MPPT/Flexmax:

Outback Power Flexmax is known for its reliable charge controllers and FM80 MPPT is no exception. It features cutting-edge MPPT technology, solid build quality, and a host of programmable options.

Renogy Rover MPPT:

Renogy’s Rover MPPT charge controller is highly regarded for its affordability and performance. They offer efficient MPPT tracking, multiple battery charging options, and a user-friendly interface with an LCD display.

Innovative MPPT Design
The die-cast aluminum design ensures excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98% It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all-day
12V/24V Automatically Detect
Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes
Full System Protection
Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current
4-Stage Safely Charging
Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation
Diverse Load Control
Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller

Epever TracerAN MPPT:

Epever’s TracerAN MPPT controllers are known for their efficiency and reliability. They provide advanced MPPT technology, multiple load control modes, and a wide range of protection features.

Features:

Blacklight Display for easy access to parameters
Ground Common Negative for all components of the controller
Compatible with lithium-ion Batteries. Configurable with different battery types (Gel, Sealed, Flooded, and Lithium).

Auto-detects between 12v and 24v system designs, and multifaceted safety systems to prevent short circuits, overloading, overheating, and polarity issues.

Epever offers 3-stage charging for maximum battery life it has intelligent power saving and temperature compensation and operates on multiple load control modes i.e. manual, light ON/OFF, and On+Timer.
MT50 Offer Remote monitoring.

It’s important to consider factors such as the maximum power rating, input voltage range, battery compatibility, and additional features when selecting an MPPT solar charge controller. Additionally, consulting with a solar professional or referring to user reviews can provide further insights into the best choice for your specific requirements.
